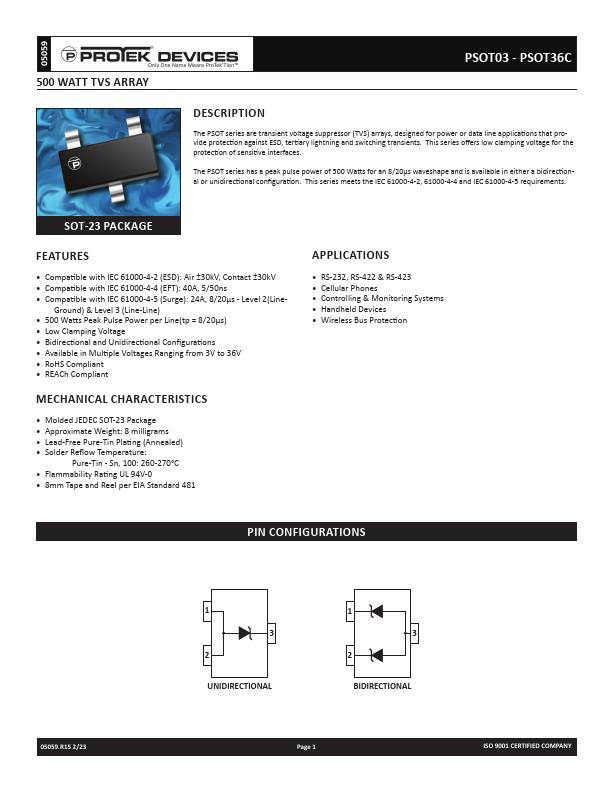

PSOT08 Overview
The PSOT series are transient voltage suppressor (TVS) arrays, designed for power or data line applications that provide protection against ESD, tertiary lightning and switching transients. This series offers low clamping voltage for the protection of sensitive interfaces. The PSOT series has a peak pulse power of 500 Watts for an 8/20µs waveshape and is available in either a bidirectional or unidirectional...
PSOT08 Key Features
- patible with IEC 61000-4-2 (ESD): Air ±30kV, Contact ±30kV
- patible with IEC 61000-4-4 (EFT): 40A, 5/50ns
- patible with IEC 61000-4-5 (Surge): 24A, 8/20µs
- Level 2(Line
- 500 Watts Peak Pulse Power per Line(tp = 8/20µs)
- Low Clamping Voltage
- Bidirectional and Unidirectional Configurations
- Available in Multiple Voltages Ranging from 3V to 36V
- RoHS pliant
- REACh pliant
PSOT08 Applications
- patible with IEC 61000-4-2 (ESD): Air ±30kV, Contact ±30kV
- patible with IEC 61000-4-4 (EFT): 40A, 5/50ns
- patible with IEC 61000-4-5 (Surge): 24A, 8/20µs
