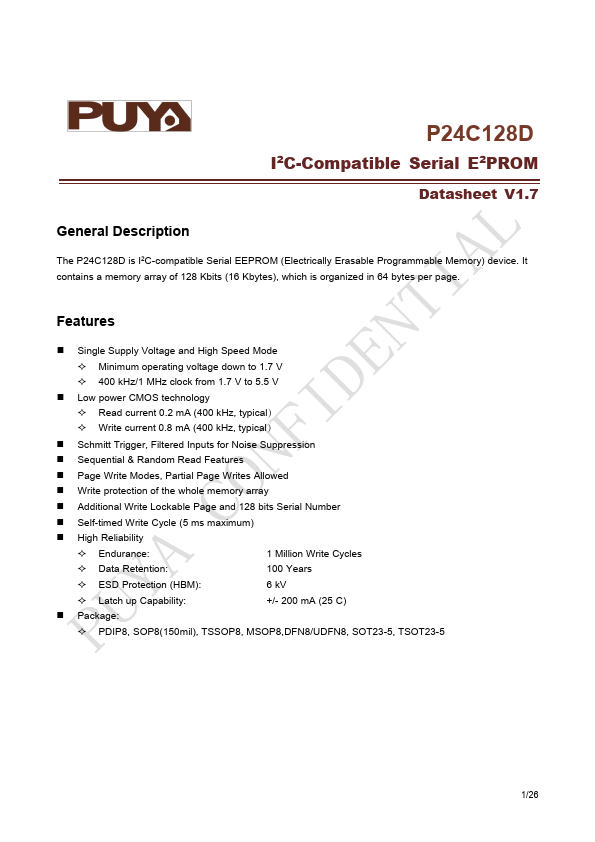

Puya Semiconductor P24C128D
The P24C128D is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 128 Kbits (16 Kbytes), which is organized in 64 bytes per page.| Part No. | P24C128D |
|---|---|
| Datasheet | P24C128D Download |
| Manufacturer |  Puya Semiconductor |
| Description | I2C-Compatible Serial E2PROM |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
● Single Supply Voltage and High Speed Mode● Minimum operating voltage down to 1.7 V
● 400 kHz/1 MHz clock from 1.7 V to 5.5 V
● Low power CMOS technology
● Read current 0.2 mA (400 kHz, typical）
● Write current 0.8 mA (400 kHz, typical）
● Schmitt Trigger, Filtered Inputs for Noise Suppression
● Sequential & Random Read
FEATURES
● Page Write Modes, Partial Page Writes Allowed● Write protection of the whole memory array
● Additional Write Lockable Page and 128 bits Serial Number
● Self-timed Write Cycle (5 ms maximum)
● High Reliability
● Endurance: 1 Million Write Cycles
● Data Retention: 100 Years
● ESD Protection (HBM): 6 kV
● Latch up Capability: +/- 200 mA (25 C)
● Package:

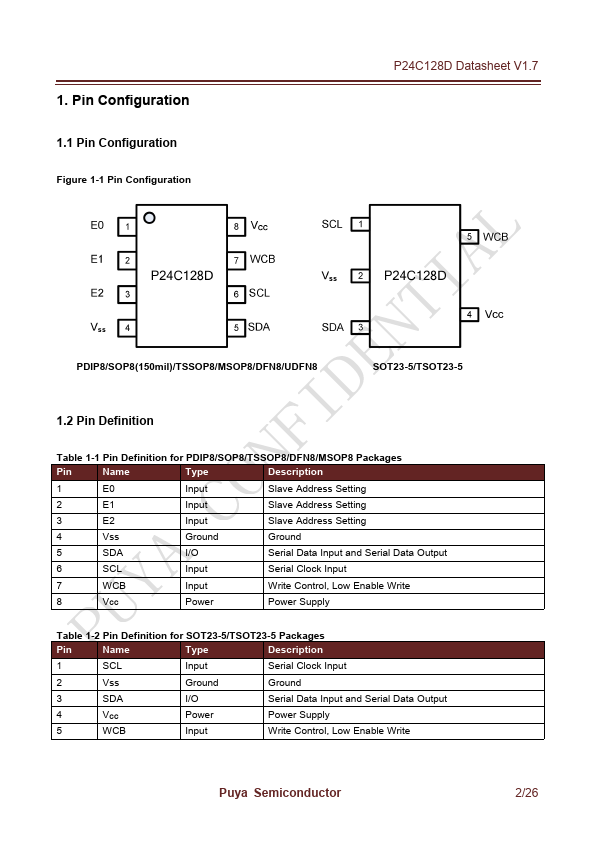

● PDIP8, SOP8(150mil), TSSOP8, MSOP8,DFN8/UDFN8, SOT23-5, TSOT23-5 1/26 1. Pin Configuration 1.1 Pin Configuration Figure 1-1 Pin Configuration P24C128D Datasheet V1.7...
