Puya Semiconductor P24C128F
The P24C128F is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 128 Kbits (16 Kbytes), which is organized in 64 bytes per page.| Part No. | P24C128F |
|---|---|
| Datasheet | P24C128F Download |
| Manufacturer |  Puya Semiconductor |
| Description | I2C-Compatible Serial E2PROM |
| Buy | Stock & Price |

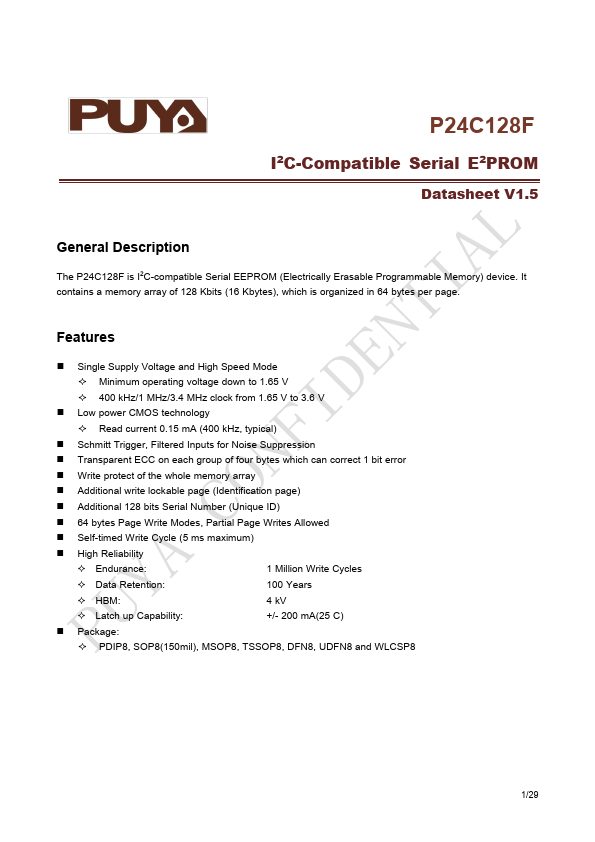

GENERAL DESCRIPTION
FEATURES
● Single Supply Voltage and High Speed Mode● Minimum operating voltage down to 1.65 V
● 400 kHz/1 MHz/3.4 MHz clock from 1.65 V to 3.6 V
● Low power CMOS technology
● Read current 0.15 mA (400 kHz, typical)
● Schmitt Trigger, Filtered Inputs for Noise Suppression
● Transparent ECC on each group of four bytes which can correct 1 bit error
● Write protect of the whole memory array
● Additional write lockable page (Identification page)
● Additional 128 bits Serial Number (Unique ID)
● 64 bytes Page Write Modes, Partial Page Writes Allowed
● Self-timed Write Cycle (5 ms maximum)
● High Reliability
●Endurance: 1 Million Write Cycles
●Data Retention: 100 Years
●HBM: 4 kV
●Latch up Capability: +/- 200 mA(25 C)
● Package:
● PDIP8, SOP8(150mil), MSOP8, TSSOP8, DFN8, UDFN8 and WLCSP8 1/29 1. Pin Configuration 1.1 Pin Configuration Figure 1-1 Pin Configuration P24C128F Datasheet V1.5...
