Puya Semiconductor P24C128H
The P24C128H is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 128 Kbits (16 Kbytes), which is organized in 64 bytes per page.| Part No. | P24C128H |
|---|---|
| Datasheet | P24C128H Download |
| Manufacturer |  Puya Semiconductor |
| Description | I2C-Compatible Serial E2PROM |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
● Single Supply Voltage and Support Fast and High Speed Mode● Minimum operating voltage down to 1.7 V
● 400 kHz/1 MHz/3.4 MHz clock from 1.7 V to 5.5 V
● Low power CMOS technology
● Read current 0.2 mA (3.3 V 400 kHz, typical)
● Schmitt Trigger, Filtered Inputs for Noise Suppression
● Transparent ECC on each group of four bytes which can correct 1-bit error
● Write protect of the whole memory array
● Additional write lockable page (Identification page)
● Additional 128 bits Serial Number (Unique ID)
● Sequential & Random Read
FEATURES
● 64 bytes Page Write Modes, Partial Page Writes Allowed● Self-timed Write Cycle (5 ms maximum)
● High Reliability
● Endurance: 4 Million Write Cycles
● Data Retention: 200 Years
● HBM: 6 kV
● Latch up Capability: +/- 200 mA(25 C)

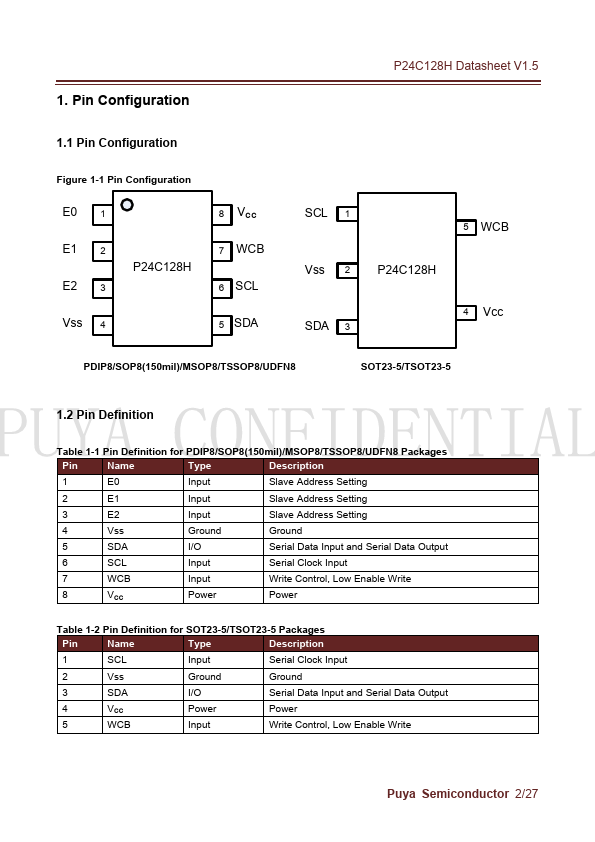

● Package: PDIP8, SOP8(150mil), TSSOP8, MSOP8, DFN8, UDFN8 1/27 1. Pin Configuration P24C128H Datasheet V1.5 1.1 Pin Configuration Figure 1-1 Pin Configuration E0 1 8 VCC E1 2 E2 3 P24C128H 7 WCB 6...
