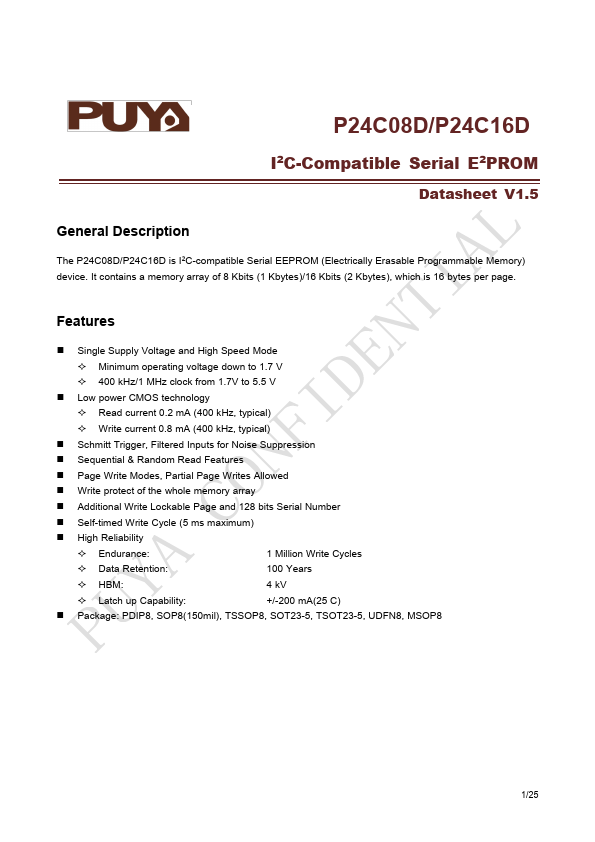

P24C16D
Overview
The P24C08D/P24C16D is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 8 Kbits (1 Kbytes)/16 Kbits (2 Kbytes), which is 16 bytes per page.
- Single Supply Voltage and High Speed Mode Minimum operating voltage down to 1.7 V 400 kHz/1 MHz clock from 1.7V to 5.5 V
- Low power CMOS technology Read current 0.2 mA (400 kHz, typical) Write current 0.8 mA (400 kHz, typical)
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Sequential & Random Read Features
- Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Additional Write Lockable Page and 128 bits Serial Number
- Self-timed Write Cycle (5 ms maximum)
- High Reliability Endurance: 1 Million Write Cycles Data Retention: 100 Years HBM: 4 kV Latch up Capability: +/-200 mA(25 C)
- Package: PDIP8, SOP8(150mil), TSSOP8, SOT23-5, TSOT23-5, UDFN8, MSOP8 1/25
