2SC4713K Datasheet 6v 50ma High Frequency Amplifier Transistor

Manufacturer: ROHM

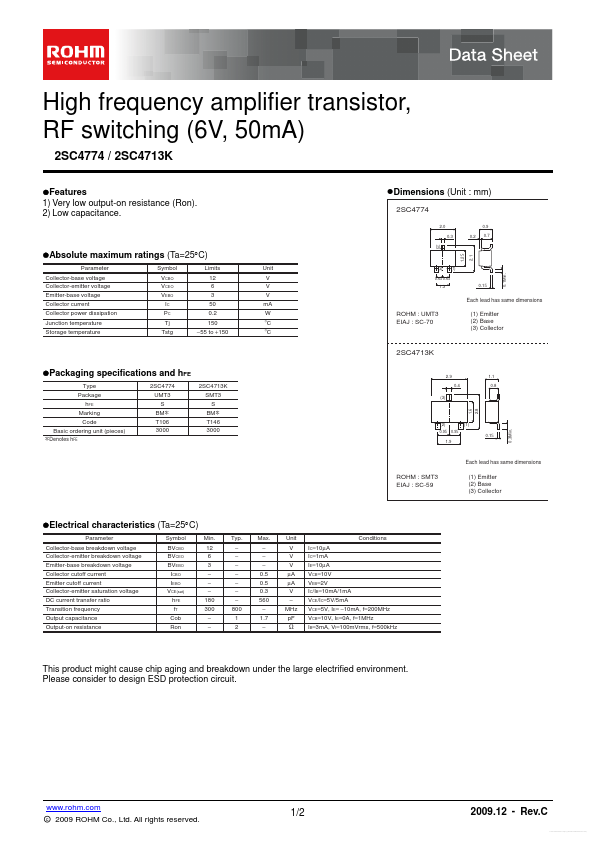

Overview: High frequency amplifier transistor, RF switching (6V, 50mA) 2SC4774 / 2SC4713K.

Datasheet Details

Part number 2SC4713K
Manufacturer ROHM
File Size 110.48 KB
Description 6V 50mA High frequency amplifier transistor
Datasheet 2SC4713K-ROHM.pdf

Key Features

  • 1) Very low output-on resistance (Ron). 2) Low capacitance.
  • Absolute maximum ratings (Ta=25C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol Limits Unit VCBO 12 V VCEO 6 V VEBO 3 V IC 50 mA PC 0.2 W Tj 150 °C Tstg.
  • 55 to +150 °C.
  • Packaging specifications and hFE Type Package hFE Marking Code Basic ordering unit (pieces) ∗Den.
