Datasheet Details
| Part number | BD900N5FP2-C |
|---|---|
| Manufacturer | ROHM |
| File Size | 2.97 MB |
| Description | LDO Regulators |
| Datasheet | BD900N5FP2-C BD933N5EFJ-C Datasheet (PDF) |
|
|

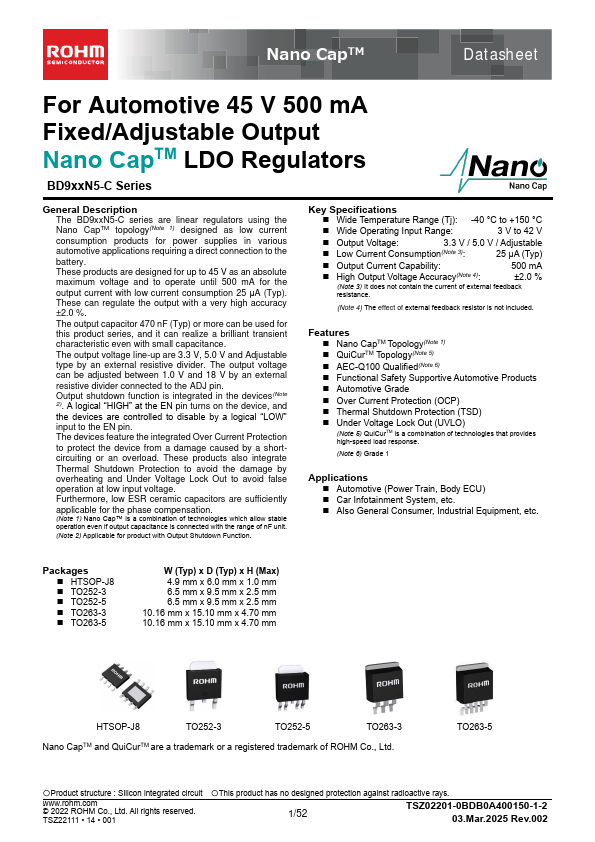

Overview: Nano CapTM Datasheet For Automotive 45 V 500 mA Fixed/Adjustable Output Nano CapTM LDO Regulators BD9xxN5-C Series.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BD900N5FP2-C |
|---|---|
| Manufacturer | ROHM |
| File Size | 2.97 MB |
| Description | LDO Regulators |
| Datasheet | BD900N5FP2-C BD933N5EFJ-C Datasheet (PDF) |
|
|
|
The BD9xxN5-C series are linear regulators using the Nano CapTM topology(Note 1) designed as low current consumption products for power supplies in various automotive applications requiring a direct connection to the battery.
These products are designed for up to 45 V as an absolute maximum voltage and to operate until 500 mA for the output current with low current consumption 25 μA (Typ).
These can regulate the output with a very high accuracy ±2.0 %.
