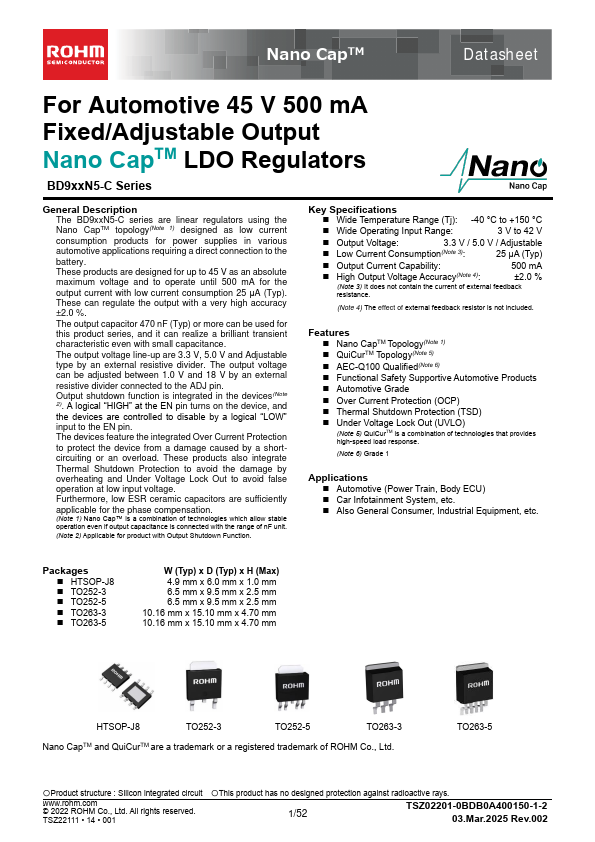

BD900N5WEFJ-C Overview
The BD9xxN5-C series are linear regulators using the Nano CapTM topology(Note 1) designed as low current consumption products for power supplies in various automotive applications requiring a direct connection to the battery. These products are designed for up to 45 V as an voltage and to operate until 500 mA for the output current with low current consumption 25 μA (Typ). These can regulate the output with a very...
BD900N5WEFJ-C Key Features
- Nano CapTM Topology(Note 1)
- QuiCurTM Topology(Note 5)
- AEC-Q100 Qualified(Note 6)
- Functional Safety Supportive Automotive Products
- Automotive Grade
- Over Current Protection (OCP)
- Thermal Shutdown Protection (TSD)
- Under Voltage Lock Out (UVLO)
