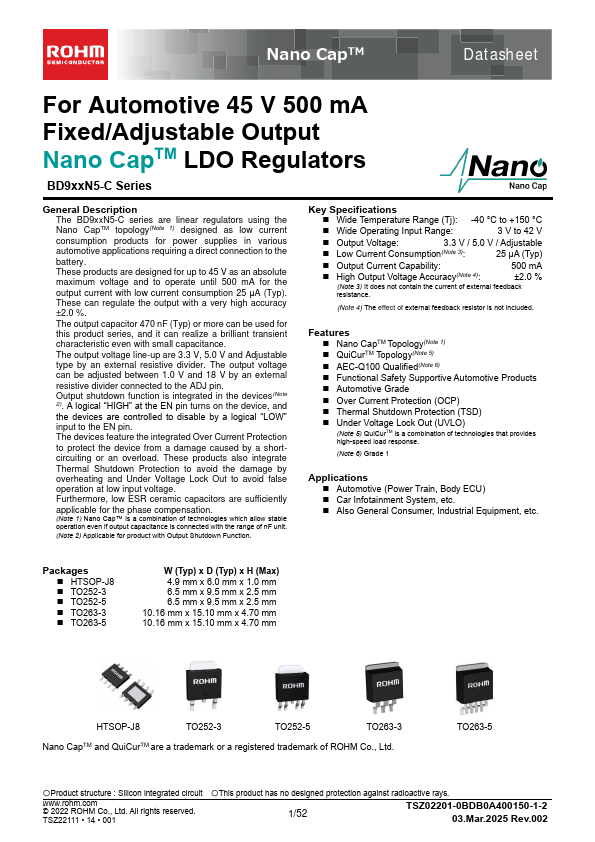

Nano CapTM For Automotive 45 V 500 mA Fixed/Adjustable Output Nano CapTM LDO Regulators BD9xxN5-C Series General Description The BD9xxN5-C series are linear regulators using the Nano CapTM topology(Note 1) designed as low current consumption products for power supplies in various automotive applications requiring a direct connection to the battery. These products are designed for up to 45 V as an absolute maximum voltage and to operate until 500 mA for the output current with low current consumption 25 μA (Typ). These can regulate the output with a very high accuracy ±2.0 %. The output capacitor 470 nF (Typ) or more can be used for this product series, and it can realize a...
