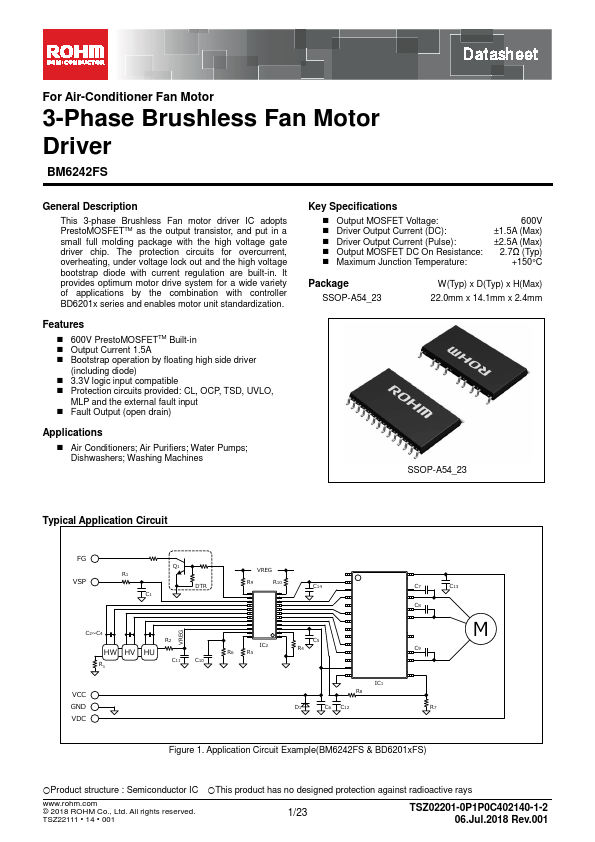

Description This 3-phase Brushless Fan motor driver IC adopts Presto MOSFETTM as the output transistor, and put in a small full molding package with the high voltage gate driver chip. The protection circuits for overcurrent, overheating, under voltage lock out and the high voltage bootstrap diode with current regulation are built-in. It provides optimum motor drive system for a wide variety of applications by the bination with controller BD6201x series and enables motor unit standardization. Features - 600V Presto MOSFETTM Built-in - Output Current 1.5A - Bootstrap operation by floating high side driver (including diode) - 3.3V logic input patible - Protection circuits provided: CL, OCP, TSD, UVLO, MLP and the external fault input - Fault Output (open drain) Applications - Air Conditioners; Air Purifiers; Water Pumps; Dishwashers; Washing Machines Key Specifications - Output MOSFET Voltage: - Driver Output Current (DC): - Driver Output Current (Pulse): - Output MOSFET DC On Resistance: - Maximum Junction Temperature: 600V ±1.5A (Max) ±2.5A (Max) 2.7Ω (Typ) +150°C Package SSOP-A54_23 W(Typ) x D(Typ) x H(Max) 22.0mm x 14.1mm x 2.4mm SSOP-A54_23 Typical Application Circuit FG VSP R1 C1 Q1 DTR VREG R9 R10 C14 VREG C2~C4 R2 HW HV HU R3 C11 C10 IC2 R6...
