BM6248FS - 3-Phase Brushless Fan Motor Driver

Description

This 3-phase Brushless Fan motor driver IC adopts PrestoMOS™ as the output transistor, and put in a small full molding package with the 180° sinusoidal commutation controller chip and the high voltage gate driver chip.

Features

  • 600V PrestoMOS™ Built-in.
  • Output Current 1.5A.
  • Bootstrap operation by floating high side driver (including diode).
  • 180° Sinusoidal Commutation Logic.
  • PWM Control (Upper and lower arm switching).
  • Phase control supported from 0° to +40° at 1° intervals.
  • Rotational Direction Switch.
  • FG signal output with pulse number switch (4 or 12).
  • VREG Output (5V/30mA).
  • Protection circuits provided: CL, OCP, TSD, UVLO, MLP and the external fault input.
  • Fau.

📥 Download Datasheet

Datasheet preview – BM6248FS

Datasheet Details

Part number BM6248FS
Manufacturer ROHM
File Size 1.80 MB
Description 3-Phase Brushless Fan Motor Driver
Datasheet download datasheet BM6248FS Datasheet

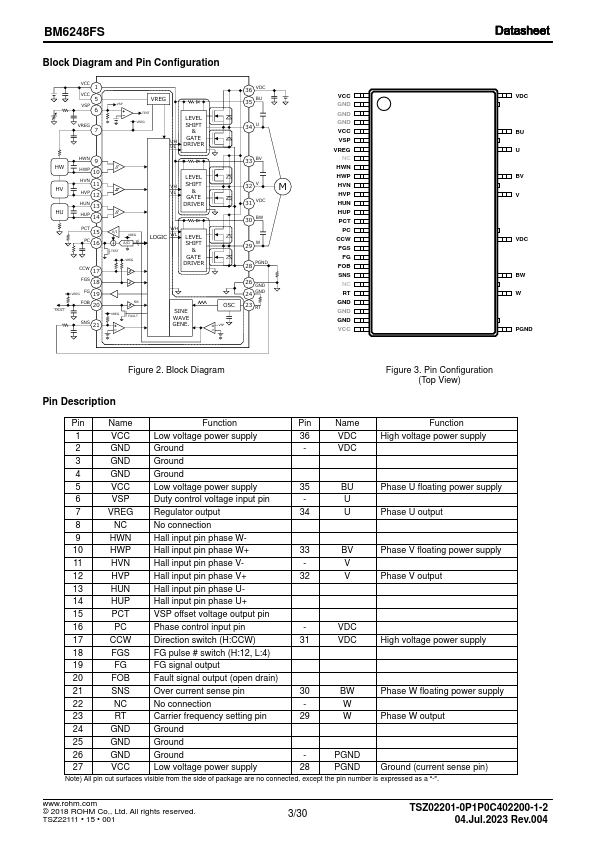

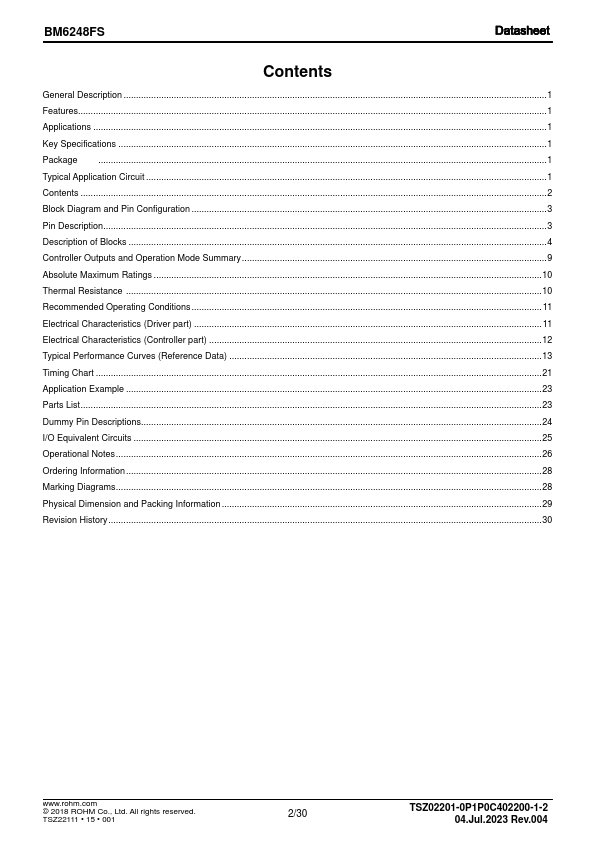

Additional preview pages of the BM6248FS datasheet.

📁 Similar Datasheet

  • BM6203 - 100mA low power LDO (Bookly)
  • BM63 - Bluetooth 4.2 Stereo Audio Module (Microchip)
Other Datasheets by ROHM
  • BM6201FS - Three phase brushless fan motor driver
  • BM6202FS - 3-Phase Brushless Fan Motor Driver
  • BM6203FS - 3-Phase Brushless Fan Motor Driver
  • BM6204FS - 3-Phase Brushless Fan Motor Driver
  • BM6205FS - 3-Phase Brushless Fan Motor Driver
  • BM6206FS - 3-Phase Brushless Fan Motor Driver
  • BM6207FS - 3-Phase Brushless Fan Motor Driver
  • BM6208FS - 3-Phase Brushless Fan Motor Driver

Full PDF Text Transcription

Click to expand full text
Datasheet For Air-Conditioner Fan Motor 3-Phase Brushless Fan Motor Driver BM6248FS General Description This 3-phase Brushless Fan motor driver IC adopts PrestoMOS™ as the output transistor, and put in a small full molding package with the 180° sinusoidal commutation controller chip and the high voltage gate driver chip. The protection circuits for overcurrent, overheating, under voltage lock out and the high voltage bootstrap diode with current regulation are built-in. It provides downsizing the built-in PCB of the motor. Features  600V PrestoMOS™ Built-in  Output Current 1.
