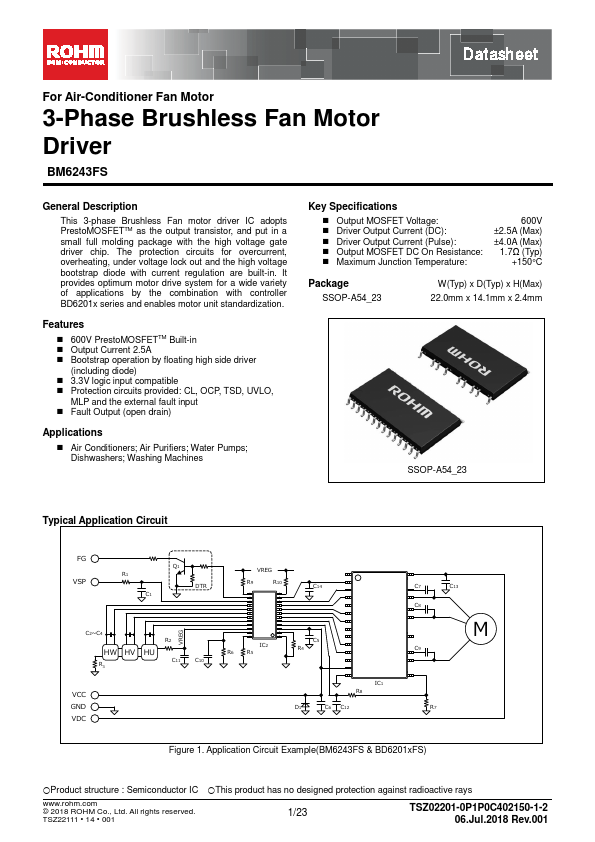

BM6243FS Overview
Key Specifications
Package: SSOP
Operating Voltage: 310 V
Max Voltage (typical range): 400 V
Length: 22 mm
Description
This 3-phase Brushless Fan motor driver IC adopts PrestoMOSFETTM as the output transistor, and put in a small full molding package with the high voltage gate driver chip. The protection circuits for overcurrent, overheating, under voltage lock out and the high voltage bootstrap diode with current regulation are built-in.
Key Features
- 600V PrestoMOSFETTM Built-in
- Output Current 2.5A
- Bootstrap operation by floating high side driver (including diode)
- 3.3V logic input compatible
- Protection circuits provided: CL, OCP, TSD, UVLO, MLP and the external fault input
