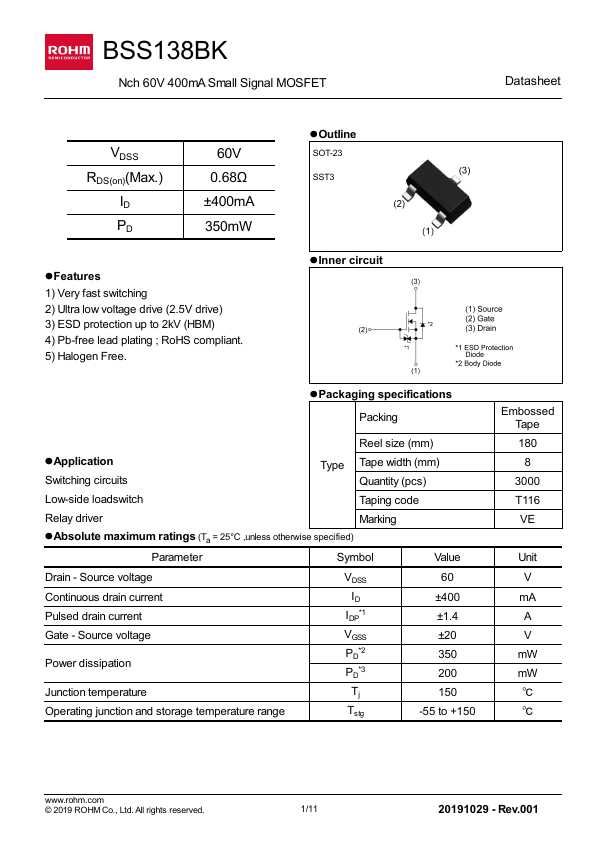

BSS138BK
Nch 60V 400m A Small Signal MOSFET
Datasheet l Outline
VDSS
60V
SOT-23
RDS(on)(Max.)
0.68Ω
SST3
±400m A
350m W
l Features
1) Very fast switching 2) Ultra low voltage drive (2.5V drive) 3) ESD protection up to 2k V (HBM) 4) Pb-free lead plating ; Ro HS pliant. 5) Halogen Free. l Inner circuit l Packaging specifications Packing
Embossed Tape
Reel size (mm)
180 l Application Switching circuits
Type Tape width (mm) Quantity (pcs)
8 3000
Low-side loadswitch
Taping code
T116
Relay driver
Marking
VE l Absolute maximum ratings (Ta = 25°C ,unless otherwise specified)
Parameter
Symbol
Value
Unit
Drain
- Source voltage
VDSS
Continuous drain current
±400 m A
Pulsed drain...
