GNP2070TD-Z - 650V Enhancement mode GaN HEMT

ROHM

Key Features

650V E-mode GaN HEMT 70mΩ Resistance 4.7nC Gate Charge Datasheet Package Information W (Typ) × D (Typ) × H (Max) 11.68 mm × 9.9 mm × 2.4 mm TOLL-8N.

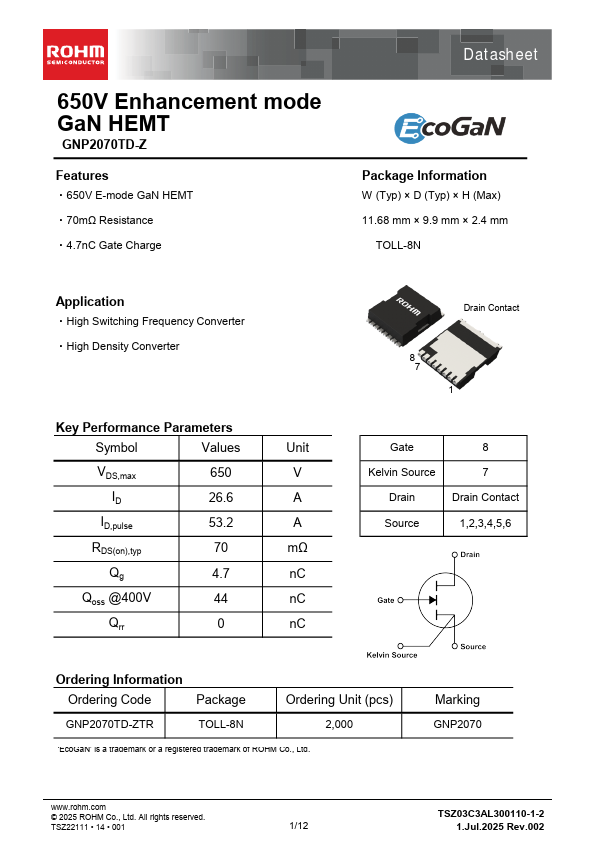

GNP2070TD-Z 650v enhancement mode gan hemt by ROHM - Datasheet Preview

Datasheet Details

Part number	GNP2070TD-Z
Manufacturer	ROHM
File Size	3.69 MB
Description	650V Enhancement mode GaN HEMT
Datasheet	GNP2070TD-Z Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by ROHM

Part Number	Description
GNP2025TD-Z	650V Enhancement mode GaN HEMT
GNP2050TD-Z	650V Enhancement mode GaN HEMT
GNP2050TEC-Z	650V Enhancement mode GaN HEMT
GNP2130TEC-Z	650V Enhancement mode GaN HEMT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

650V Enhancement mode GaN HEMT GNP2070TD-Z Features 650V E-mode GaN HEMT 70mΩ Resistance 4.7nC Gate Charge Datasheet Package Information W (Typ) × D (Typ) × H (Max) 11.68 mm × 9.9 mm × 2.4 mm TOLL-8N Application High Switching Frequency Converter High Density Converter Key Performance Parameters Symbol Values VDS,max 650 ID 26.6 ID,pulse 53.2 RDS(on),typ 70 Qg 4.7 Qoss @400V 44 Qrr 0 Unit V A A mΩ nC nC nC Drain Contact 8 7 1 Gate 8 Kelvin Source 7 Drain Drain Contact Source 1,2,3,4,5,6 Ordering Information Ordering Code Package Ordering Unit (pcs) GNP2070TD-ZTR TOLL-8N 2,000 ‘EcoGaN’ is a trademark or a registered trademark of ROHM Co., Ltd. Marking GNP2070 www.rohm.com © 2025 ROHM Co., Ltd. All rights reserved.
