RGS80TSX2DHR Datasheet 1200V 40A Field Stop Trench IGBT

Manufacturer: ROHM

📥 Download Datasheet

Datasheet Details

Part number RGS80TSX2DHR
Manufacturer ROHM
File Size 896.73 KB
Description 1200V 40A Field Stop Trench IGBT
Datasheet download datasheet RGS80TSX2DHR Datasheet

Overview

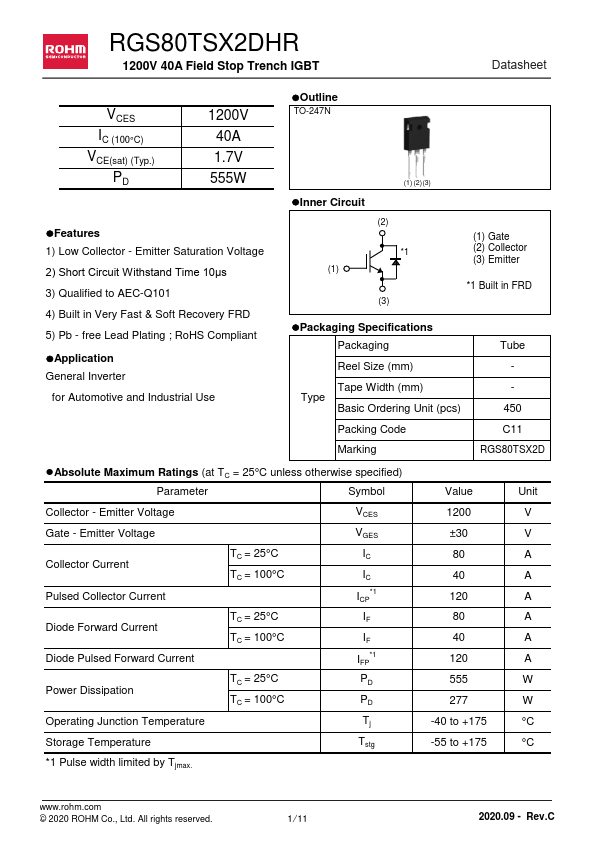

RGS80TSX2DHR 1200V 40A Field Stop Trench IGBT Datasheet VCES IC (100°C) VCE(sat) (Typ.) PD 1200V 40A 1.

Key Features

  • 1) Low Collector - Emitter Saturation Voltage 2) Short Circuit Withstand Time 10μs 3) Qualified to AEC-Q101 4) Built in Very Fast & Soft Recovery FRD 5) Pb - free Lead Plating ; RoHS Compliant l.
