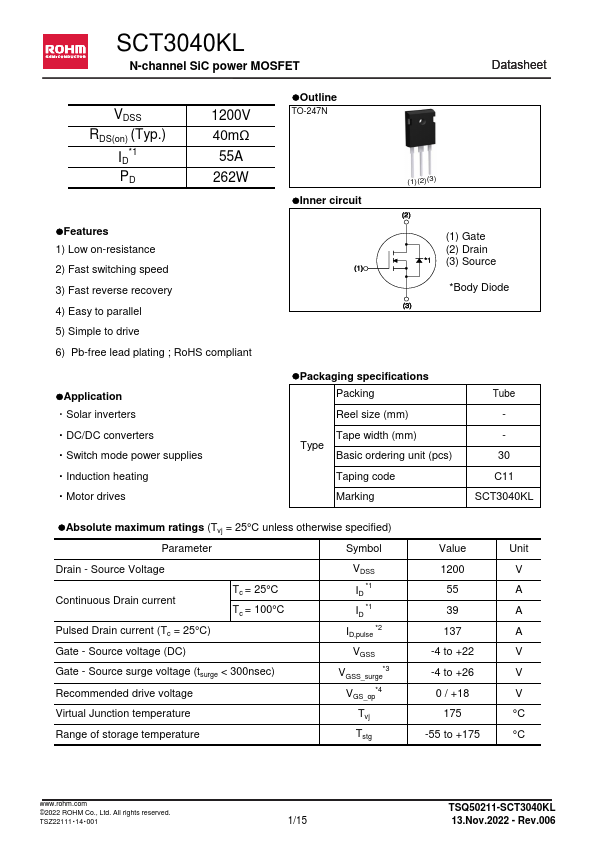

SCT3040KL
SCT3040KL is N-channel SiC power MOSFET manufactured by ROHM.
N-channel Si C power MOSFET
VDSS RDS(on) (Typ.)
ID- 1 PD
1200V 40mΩ 55A 262W l Outline
TO-247N l Inner circuit
(1) (2) (3) l Features 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; Ro HS pliant l Application
- Solar inverters
- DC/DC converters
- Switch mode power supplies
- Induction heating
- Motor drives
(1) Gate (2) Drain (3) Source
- Body Diode
Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction. l Packaging specifications Packing
Reel size (mm)
Tape width (mm) Type
Basic ordering unit (pcs)
Taping code
Marking
Tube 30
C11 SCT3040KL l Absolute maximum ratings (Tvj = 25°C unless otherwise specified)
Parameter
Symbol
Drain
- Source Voltage
Continuous Drain current
Pulsed Drain current (Tc = 25°C) Gate
- Source voltage (DC)
Tc = 25°C Tc = 100°C
Gate
- Source surge voltage (tsurge < 300nsec) Remended drive voltage
Virtual Junction temperature
VDSS ID
- 1 ID
- 1 ID,pulse
- 2 VGSS VGSS_surge- 3 VGS_op- 4 Tvj
Range of storage temperature
Tstg
Value
Unit...
