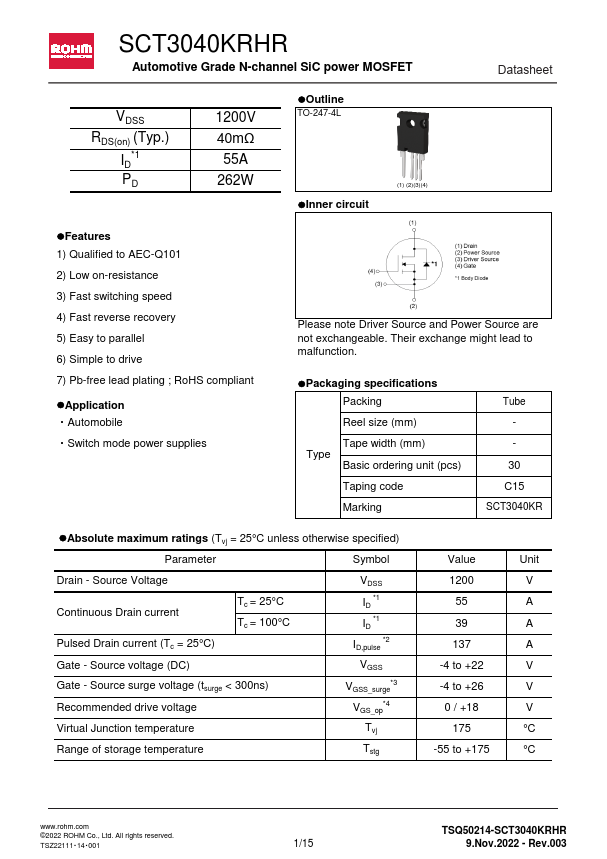

Automotive Grade N-channel Si C power MOSFET VDSS RDS(on) (Typ.) ID- 1 PD 1200V 40mΩ 55A 262W l Outline TO-247-4L l Inner circuit (1) (2)(3)(4) Datasheet l Features 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; Ro HS pliant l Application - Automobile - Switch mode power supplies Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction. l Packaging specifications Packing Reel size (mm) Tape width (mm) Type Basic ordering unit (pcs) Taping code Marking Tube 30 C15 SCT3040KR l Absolute maximum ratings (Tvj = 25°C unless otherwise specified) Parameter Symbol Drain - Source Voltage Continuous Drain current Pulsed Drain current (Tc = 25°C) Tc = 25°C Tc = 100°C Gate - Source voltage (DC) Gate - Source surge voltage (tsurge < 300ns) Remended drive voltage Virtual Junction temperature VDSS ID - 1 ID - 1 ID,pulse - 2 VGSS VGSS_surge- 3 VGS_op- 4 Tvj Range of storage temperature Tstg Value Unit -4 to +22 -4 to...
