SCT4036DR - N-channel SiC power MOSFET

ROHM

Key Features

1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lInner circuit (1) (1) Drain (2) Power Source.
1 (3) Driver Source (4) (4) Gate (3).
1 Body Diode (2) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.

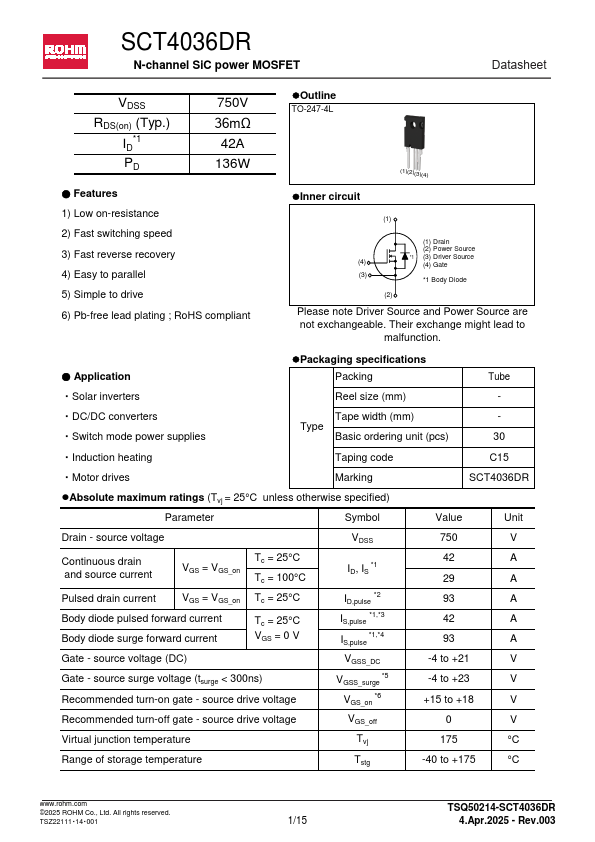

SCT4036DR n-channel sic power mosfet by ROHM - Datasheet Preview

Datasheet Details

Part number	SCT4036DR
Manufacturer	ROHM
File Size	1.23 MB
Description	N-channel SiC power MOSFET
Datasheet	SCT4036DR Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SCT-013-000	Transformer	XiDi Technology
SCT-013-000V	Split core current transformer	YHDC
SCT-013-005	Transformer	YHDC
SCT-013-010	Transformer	YHDC
SCT-013-015	Transformer	YHDC

Other Datasheets by ROHM

Part Number	Description
SCT4036DLL	N-channel SiC power MOSFET
SCT4036KE	N-channel SiC power MOSFET
SCT4036KR	N-channel SiC power MOSFET
SCT4036KRHR	Automotive Grade N-channel SiC power MOSFET
SCT4036KW7	N-channel SiC power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

SCT4036DR N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 750V 36mΩ 42A 136W lOutline TO-247-4L (1)(2)(3)(4) ● Features 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lInner circuit (1) (1) Drain (2) Power Source *1 (3) Driver Source (4) (4) Gate (3) *1 Body Diode (2) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
