SCT4036KRHR - Automotive Grade N-channel SiC power MOSFET

Key Features

  • 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lInner circuit (1) (1) Drain (2) Power Source.
  • 1 (3) Driver Source (4) (4) Gate (3).
  • 1 Body Diode (2) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.

📥 Download Datasheet

Datasheet Details

Part number SCT4036KRHR
Manufacturer ROHM
File Size 1.31 MB
Description Automotive Grade N-channel SiC power MOSFET
Datasheet download datasheet SCT4036KRHR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCT-013-000 Transformer XiDi Technology
SCT-013-000V Split core current transformer YHDC
SCT-013-005 Transformer YHDC
SCT-013-010 Transformer YHDC
SCT-013-015 Transformer YHDC

Other Datasheets by ROHM

Part Number Description
SCT4036KR N-channel SiC power MOSFET
SCT4036KE N-channel SiC power MOSFET
SCT4036KW7 N-channel SiC power MOSFET
SCT4036DLL N-channel SiC power MOSFET
SCT4036DR N-channel SiC power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

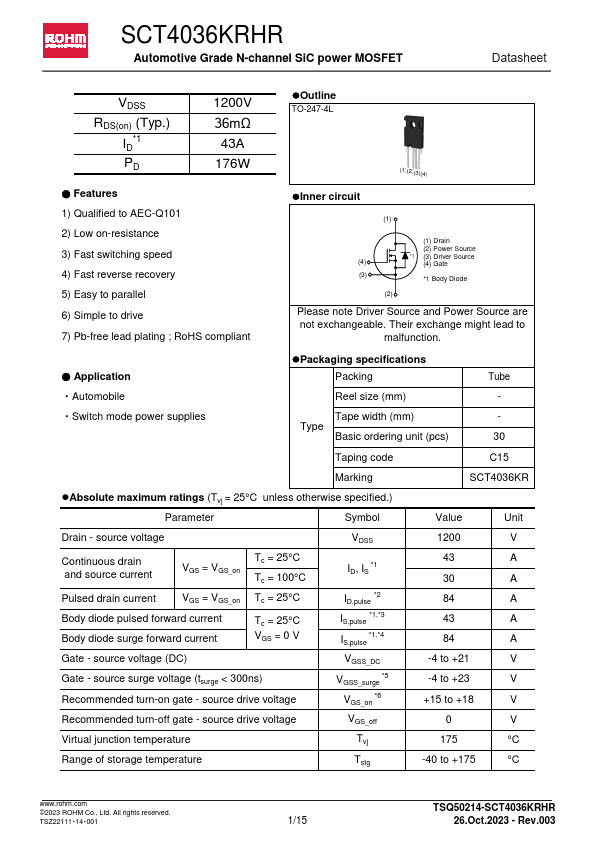

SCT4036KRHR Automotive Grade N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 1200V 36mΩ 43A 176W lOutline TO-247-4L (1)(2)(3)(4) ● Features 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lInner circuit (1) (1) Drain (2) Power Source *1 (3) Driver Source (4) (4) Gate (3) *1 Body Diode (2) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
