SCT4036KR datasheet by ROHM.
| Part number | SCT4036KR |
|---|---|
| Datasheet | SCT4036KR-ROHM.pdf |
| File Size | 1.31 MB |
| Manufacturer | ROHM |
| Description | N-channel SiC power MOSFET |
|
|

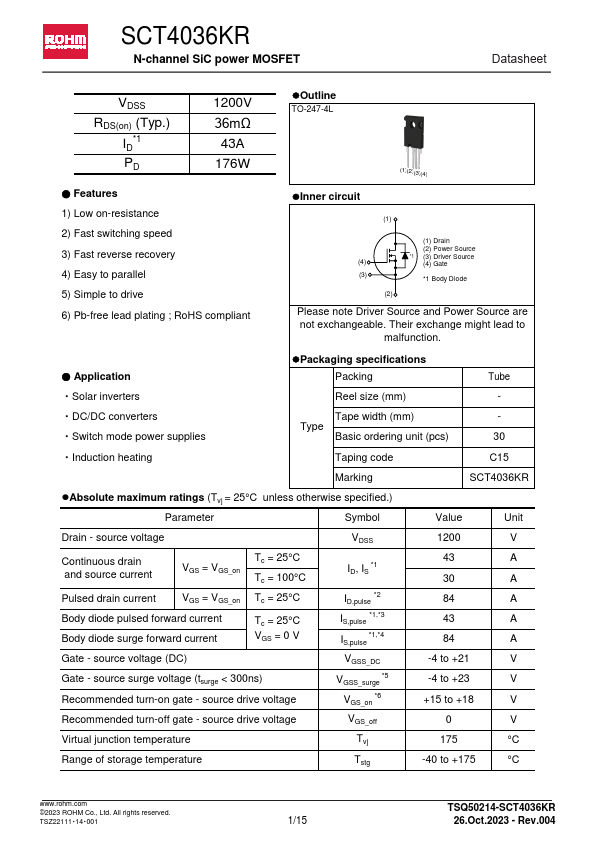

SCT4036KR N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID 1 PD 1200V 36mΩ 43A 176W lOutline TO-247-4L.
| Part Number | Description |
|---|---|
| SCT4036KRHR | Automotive Grade N-channel SiC power MOSFET |
| SCT4036KE | N-channel SiC power MOSFET |
| SCT4036KW7 | N-channel SiC power MOSFET |
| SCT4036DLL | N-channel SiC power MOSFET |
| SCT4036DR | N-channel SiC power MOSFET |
| SCT4013DE | N-channel SiC power MOSFET |
| SCT4013DLL | N-channel SiC power MOSFET |
| SCT4013DR | N-channel SiC power MOSFET |
| SCT4013DRHR | Automotive Grade N-channel SiC power MOSFET |
| SCT4013DW7 | N-channel SiC power MOSFET |
