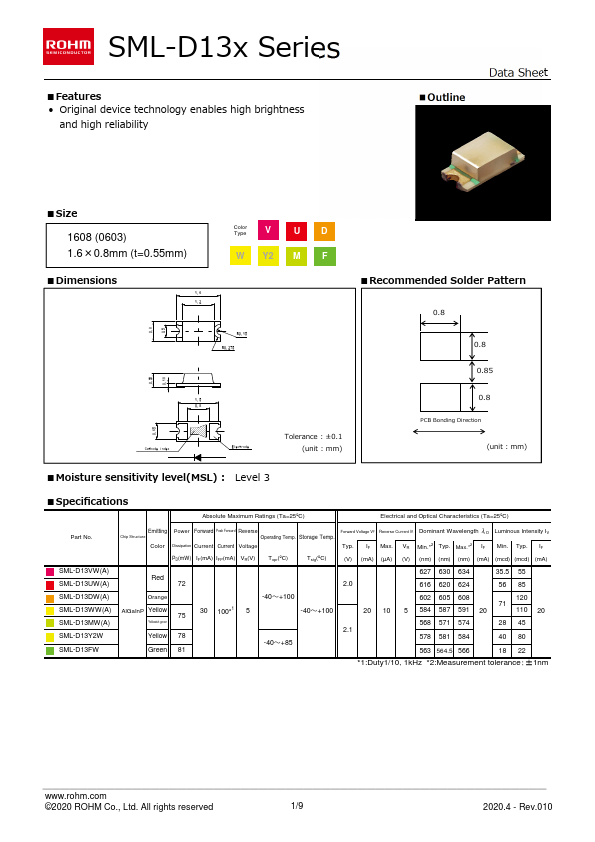

SML-D13FW
SML-D13FW is LED manufactured by ROHM.
- Part of the SML-D13VW comparator family.
- Part of the SML-D13VW comparator family.
Features
- Original device technology enables high brightness and high reliability
- Outline
Data Sheet
- Size
1608 (0603) 1.6×0.8mm (t=0.55mm)
- Dimensions
1.6 1.2
Color Type
W Y2 M F
R0.15 R0.275
- Remended Solder Pattern
0.8 0.8 0.85
1.5 0.8
Cathode index
Electrode
Tolerance : ±0.1 (unit : mm)
PCB Bonding Direction
(unit : mm)
- Moisture sensitivity level(MSL) : Level 3
- Specifications
Absolute Maximum Ratings (Ta=25ºC)
Electrical and Optical Characteristics (Ta=25ºC)
Part No.
SML-D13VW(A) SML-D13UW(A) SML-D13DW(A) SML-D13WW(A) SML-D13MW(A) SML-D13Y2W SML-D13FW
Emitting
Chip Structure
Color
Power Forward Peak Forward Reverse Operating Temp. Storage Temp.
Dissipation Current Current Voltage
Forward Voltage VF Reverse Current IR Dominant Wavelength λD Typ. IF Max. VR Min.- 2 Typ. Max.- 2 IF
Luminous Intensity IV Min. Typ....
