SML-D13WW Overview
Key Specifications
Mount Type: Surface Mount
Height: 550 µm
Max Operating Temp: 100 °C
Min Operating Temp: -40 °C
Key Features
- Original device technology enables high brightness and high reliability

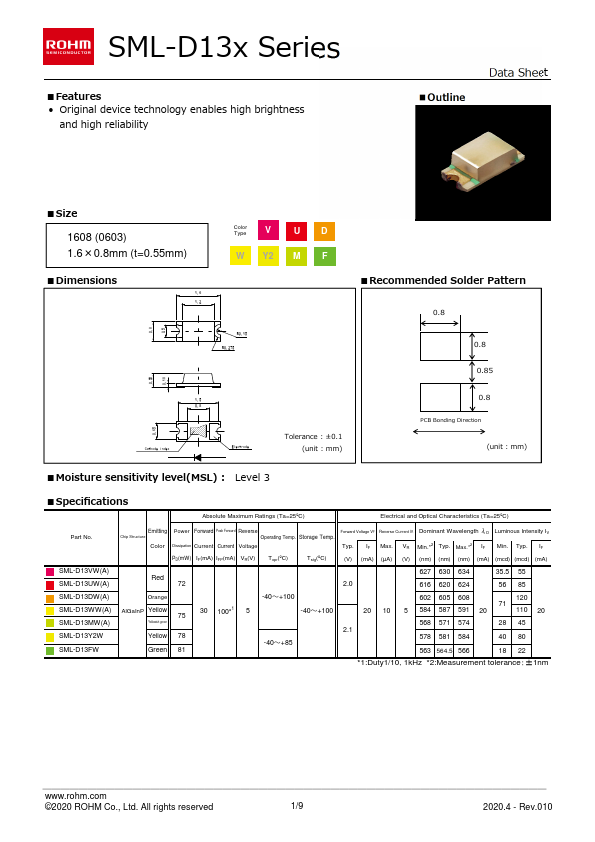

- Outline Data Sheet
- Size 1608 (0603) 1.6×0.8mm (t=0.55mm)
- Dimensions 1.6 1.2 Color Type V UD W Y2 M F 0.5 0.8 R0.15 R0.275
- Moisture sensitivity level(MSL) : Level 3
