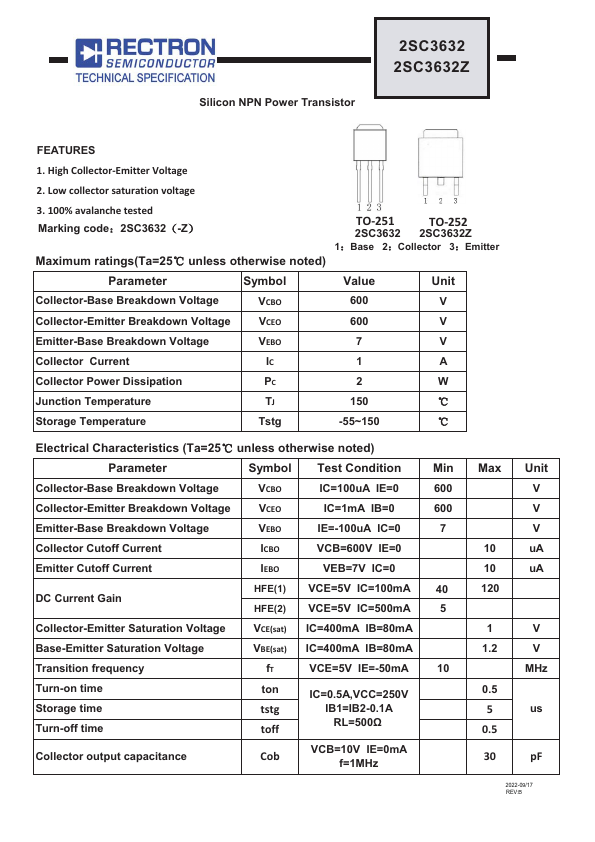

Datasheet Summary
Silicon NPN Power Transistor
2SC3632 2SC3632Z
Features
1. High Collector-Emitter Voltage
2. Low collector saturation voltage
3. 100% avalanche tested Marking code˖2SC3632˄-Z˅
TO-251
TO-252
2SC3632 2SC3632Z
1˖Base 2˖Collector 3˖Emitter
Maximum ratings(Ta=25ć unless otherwise noted)
Parameter
Symbol
Value
Unit
Collector-Base Breakdown Voltage
VCBO
Collector-Emitter Breakdown Voltage
VCEO
Emitter-Base Breakdown Voltage
VEBO
Collector Current
Collector Power Dissipation
Junction Temperature
ć
Storage Temperature
Tstg
-55~150
ć
Electrical Characteristics (Ta=25ć unless otherwise...
