HVD142A - Silicon Epitaxial Planar Pin Diode

Key Features

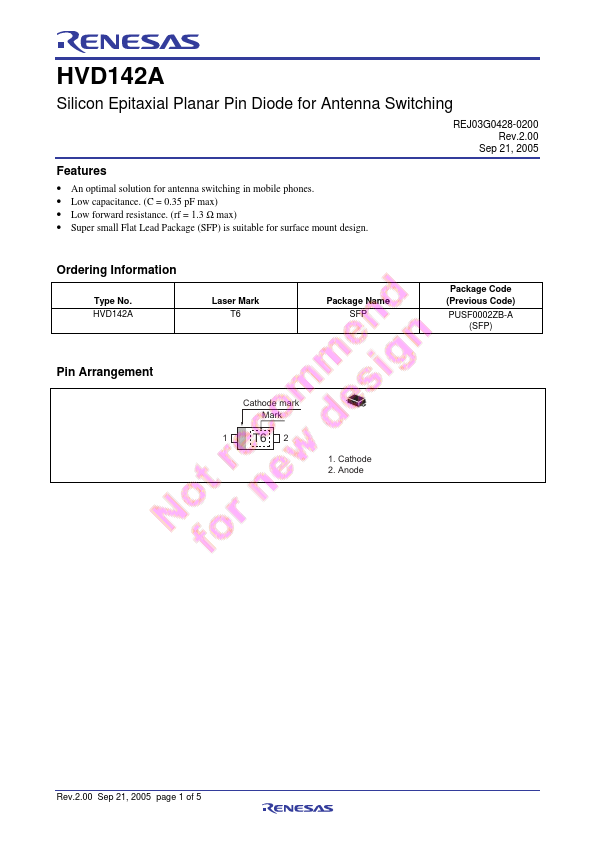

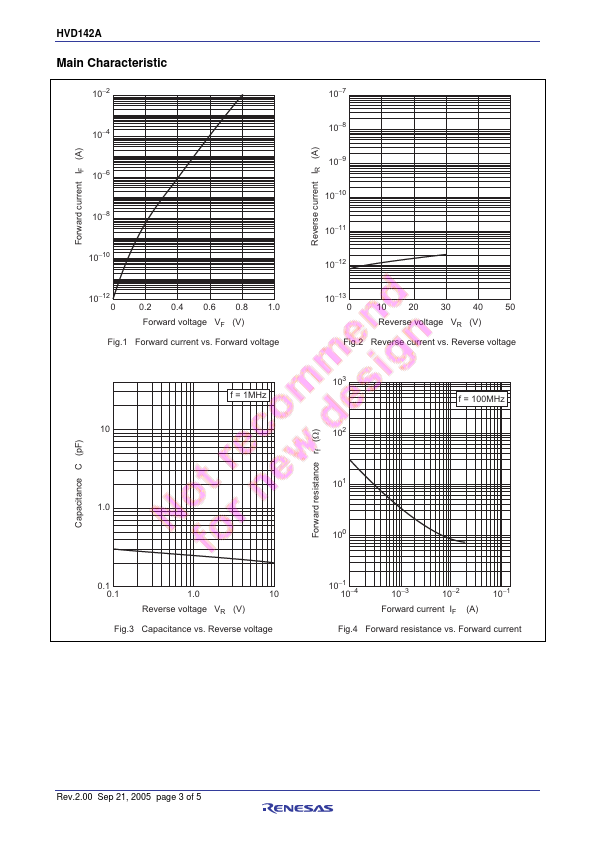

  • An optimal solution for antenna switching in mobile phones. Low capacitance. (C = 0.35 pF max) Low forward resistance. (rf = 1.3 Ω max) Super small Flat Lead Package (SFP) is suitable for surface mount design. Ordering Information Type No. HVD142A Laser Mark T6 Package Name SFP Package Code (Previous Code) PUSF0002ZB-A (SFP) Pin Arrangement Cathode mark Mark 1 www. DataSheet4U. com T6 2 1. Cathode 2. Anode Rev.2.00 Sep 21, 2005 page 1 of 5 HVD142A Ab.
