RJK0305DPB Overview
Key Specifications
Mount Type: Surface Mount
Pins: 5
Height: 1.1 mm
Max Operating Temp: 150 °C
Representative RJK0305DPB image (package may vary by manufacturer)
Key Features
- High speed switching Capable of 4.5 V gate drive Low drive current High density mounting Low on-resistance RDS(on) = 6.7 mΩ typ

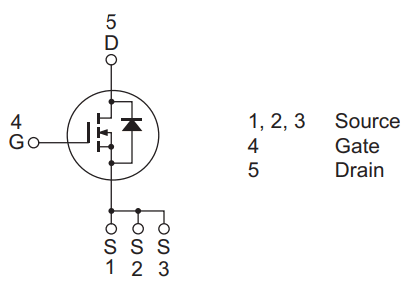

- (at VGS = 10 V) Outline RENESAS Package code: PTZZ0005DA-A (Package name: LFPAK) 5 D 5 4 G 3 12 4 1, 2, 3 4 5 Source Gate Drain S S S 1 2 3
