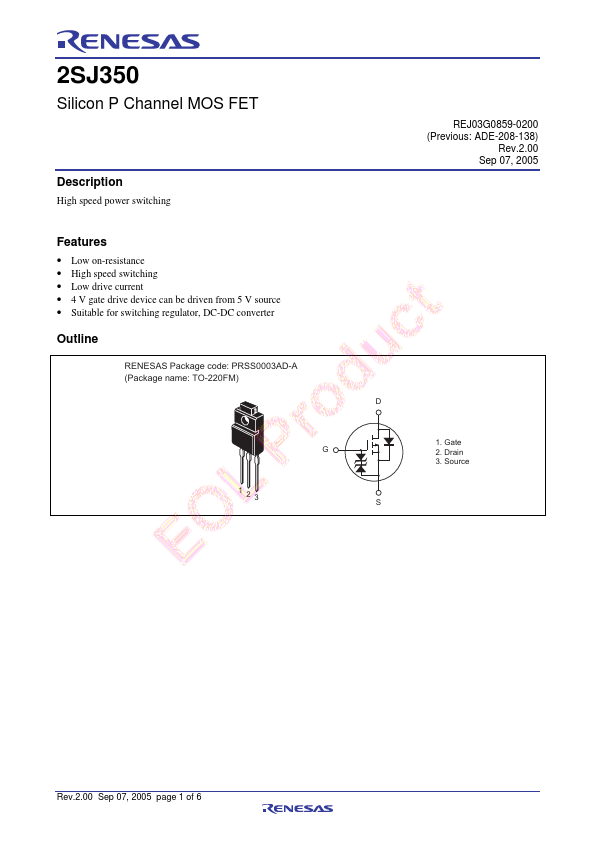

2SJ350
Silicon P Channel MOS FET
Description
High speed power switching
Features
• Low on-resistance • High speed switching • Low drive current • 4 V gate drive device can be driven from 5 V source • Suitable for switching regulator, DC-DC converter
Outline
RENESAS Package code: PRSS0003AD-A (Package name: TO-220FM)
REJ03G0859-0200 (Previous: ADE-208-138)
Rev.2.00 Sep 07, 2005
D
123
G S
1. Gate 2. Drain 3. Source
Rev.2.00 Sep 07, 2005 page 1 of 6
2SJ350

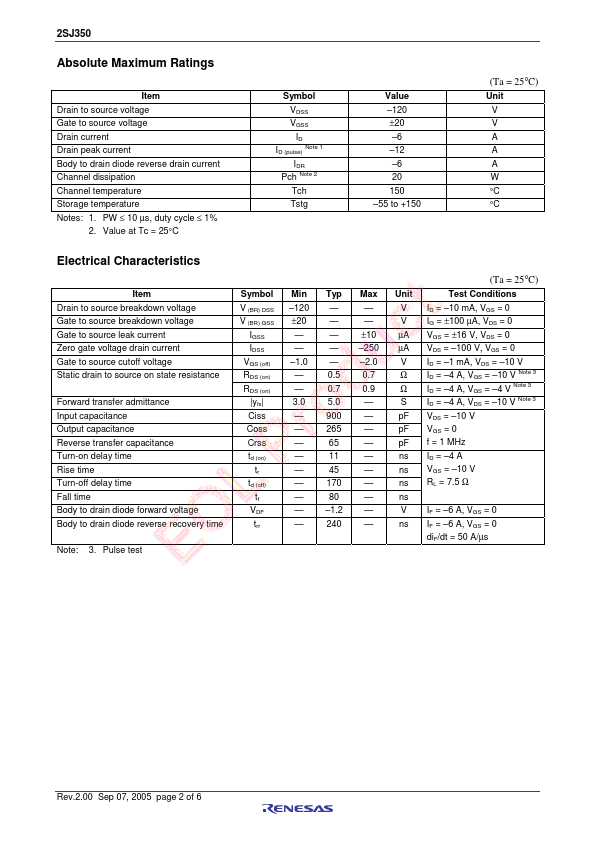

Absolute Maximum Ratings
Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1%
2.
