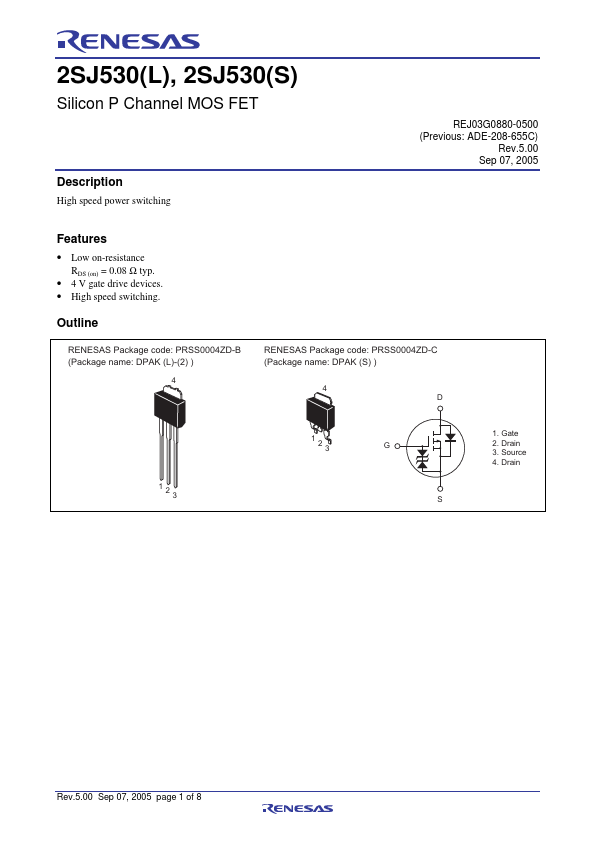

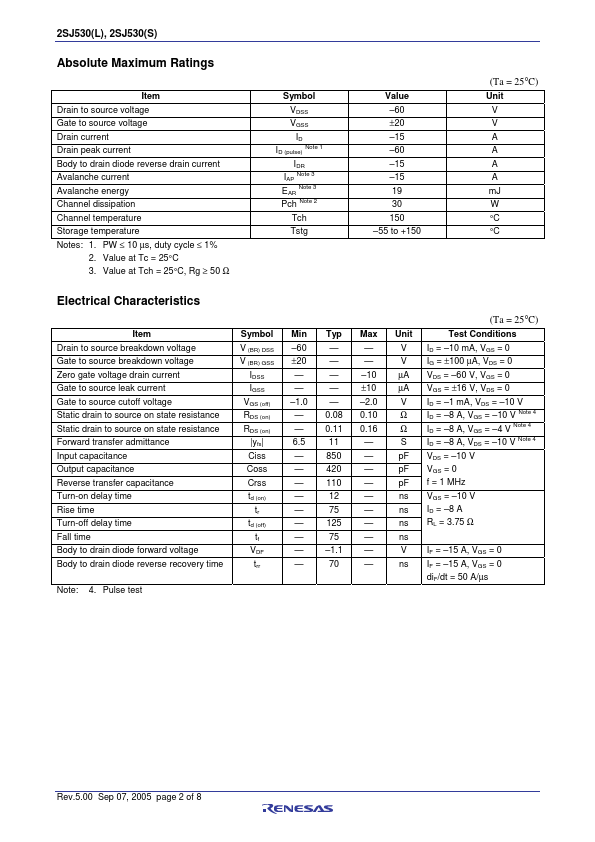

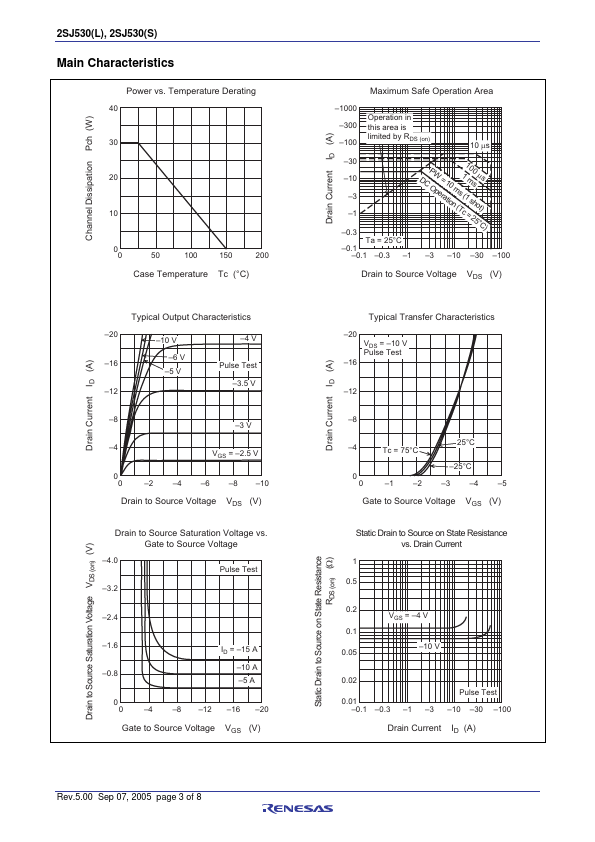

Description High speed power switching REJ03G0880-0500 (Previous: ADE-208-655C) Rev.5.00 Sep 07, 2005 Features - Low on-resistance RDS (on) = 0.08 Ω typ. - 4 V gate drive devices. - High speed switching. Outline RENESAS Package code: PRSS0004ZD-B (Package name: DPAK (L)-(2) ) RENESAS Package code: PRSS0004ZD-C (Package name: DPAK (S) ) 4 D 1. Gate 2. Drain 3. Source 4. Drain Rev.5.00 Sep 07, 2005 page 1 of 8 2SJ530(L), 2SJ530(S) Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1% 2. Value at Tc = 25°C 3. Value at Tch = 25°C, Rg ≥ 50 Ω Symbol VDSS VGSS ID ID (pulse) Note 1 IDR IAP Note 3 EAR Note 3 Pch Note 2 Tch Tstg Value - 60 ±20 - 15 - 60 - 15 - 15 19 30 150 - 55 to +150 (Ta = 25°C) Unit V V A A A A m J W °C °C Electrical Characteristics Item Drain to source breakdown voltage Gate to source breakdown voltage Zero gate voltage drain current Gate to source leak current Gate to source cutoff voltage Static drain to source on state resistance Static drain to source on state resistance Forward transfer admittance Input capacitance Output capacitance Reverse transfer capacitance Turn-on delay time Rise time Turn-off delay time Fall time Body to drain diode forward voltage Body to drain diode reverse recovery time Note: 4. Pulse test Symbol V (BR) DSS V (BR) GSS IDSS IGSS VGS (off) RDS (on) RDS (on) |yfs| Ciss Coss Crss td (on) tr td (off) tf VDF...
