2SJ530S - 60V P-Channel MOSFET

VBsemi

Key Features

Trench Power MOSFET.
100 % UIS Tested.

2SJ530S 60v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ530S
Manufacturer	VBsemi
File Size	203.06 KB
Description	60V P-Channel MOSFET
Datasheet	2SJ530S Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ530S	Silicon P-Channel MOSFET	Hitachi Semiconductor
2SJ530S	Hight Speed Power Switching	Kexin
2SJ530S	Silicon P-Channel MOSFET	Renesas
2SJ530	Silicon P-Channel MOSFET	Hitachi Semiconductor
2SJ530	Silicon P-Channel MOSFET	Renesas

Other Datasheets by VBsemi

Part Number	Description
2SJ505S	P-Channel MOSFET
2SJ518	P-Channel 60V MOSFET
2SJ529S	P-Channel 60V MOSFET
2SJ598	60V P-Channel MOSFET
2SJ599-Z-E1-AZ	60V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

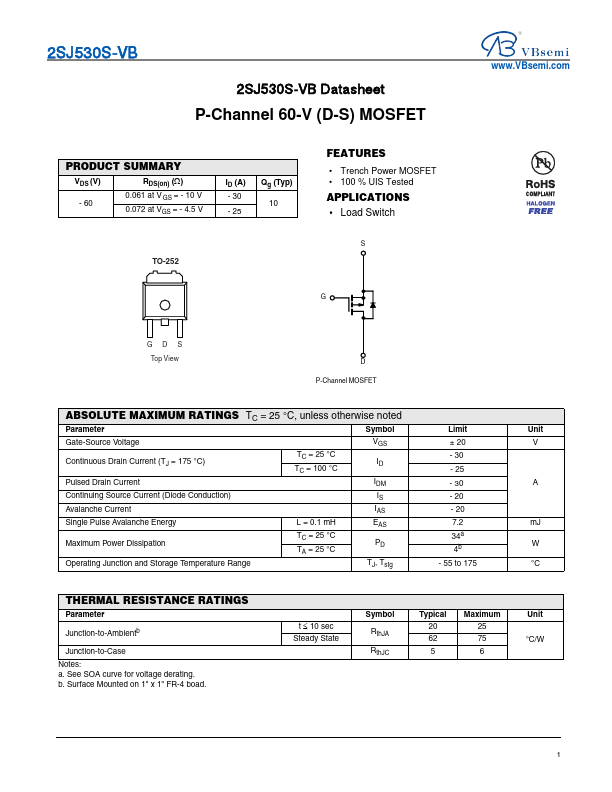

2SJ530S-VB 2SJ530S-VB Datasheet P-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 60 0.061 at V GS = - 10 V 0.072 at VGS = - 4.5 V ID (A) - 30 - 25 Qg (Typ) 10 TO-252 FEATURES • Trench Power MOSFET • 100 % UIS Tested APPLICATIONS • Load Switch S G www.VBsemi.com GDS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 100 °C ID - 30 - 25 Pulsed Drain Current IDM - 30 A Continuing Source Current (Diode Conduction) IS - 20 Avalanche Current IAS - 20 Single Pulse Avalanche Energy Maximum Power Dissipation L = 0.1 mH EAS 7.
