2SJ530S - Silicon P-Channel MOSFET

Download the 2SJ530S datasheet PDF. This datasheet also covers the 2SJ530 variant, as both devices belong to the same silicon p-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

General Description

High speed power switching REJ03G0880-0500 (Previous: ADE-208-655C) Rev.5.00 Sep 07, 2005

Key Features

  • Low on-resistance RDS (on) = 0.08 Ω typ.
  • 4 V gate drive devices.
  • High speed switching. Outline.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2SJ530-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2SJ530S
Manufacturer Renesas
File Size 84.99 KB
Description Silicon P-Channel MOSFET
Datasheet download datasheet 2SJ530S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ530S Silicon P-Channel MOSFET Hitachi Semiconductor
2SJ530S Hight Speed Power Switching Kexin
2SJ530S 60V P-Channel MOSFET VBsemi
2SJ530 Silicon P-Channel MOSFET Hitachi Semiconductor
2SJ530L Silicon P-Channel MOSFET Hitachi Semiconductor

Other Datasheets by Renesas

Part Number Description
2SJ530 Silicon P-Channel MOSFET
2SJ530L Silicon P-Channel MOSFET
2SJ535 Silicon P-Channel MOSFET
2SJ527 P-Channel MOSFET
2SJ527L P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

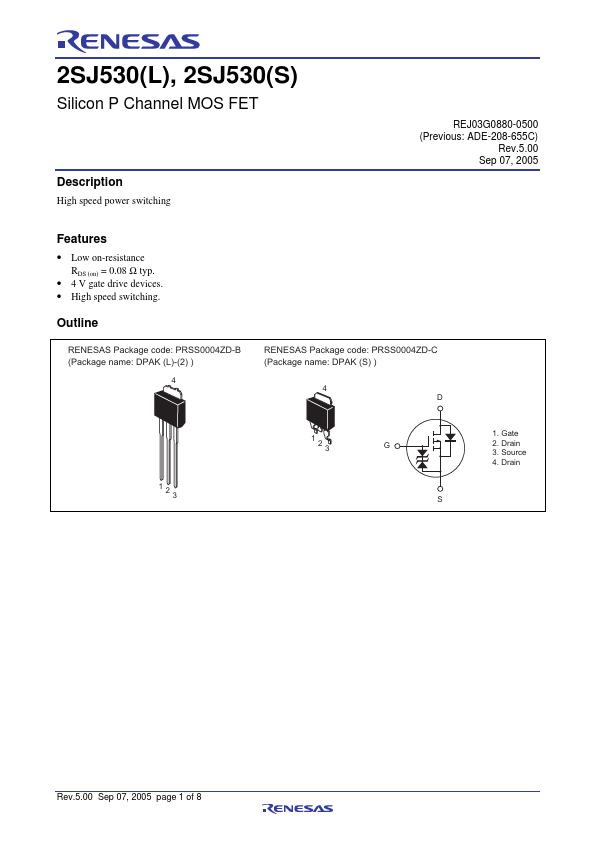

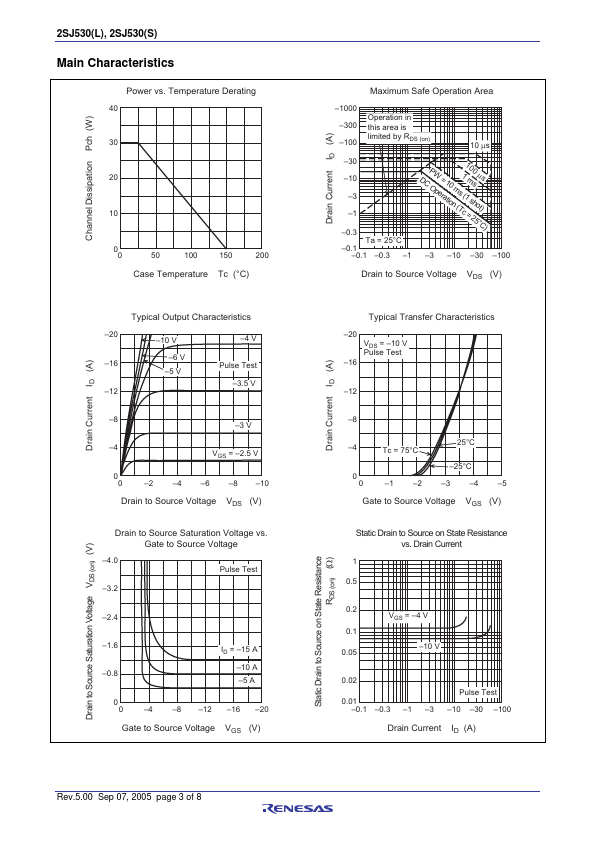

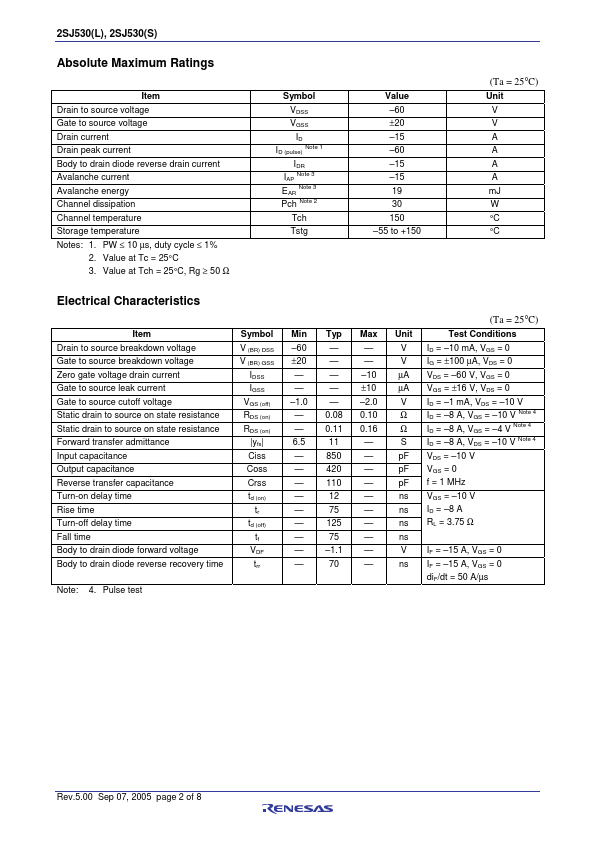

2SJ530(L), 2SJ530(S) Silicon P Channel MOS FET Description High speed power switching REJ03G0880-0500 (Previous: ADE-208-655C) Rev.5.00 Sep 07, 2005 Features • Low on-resistance RDS (on) = 0.08 Ω typ. • 4 V gate drive devices. • High speed switching. Outline RENESAS Package code: PRSS0004ZD-B (Package name: DPAK (L)-(2) ) 4 RENESAS Package code: PRSS0004ZD-C (Package name: DPAK (S) ) 4 D 123 123 G S 1. Gate 2. Drain 3. Source 4. Drain Rev.5.00 Sep 07, 2005 page 1 of 8 2SJ530(L), 2SJ530(S) Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1% 2.
