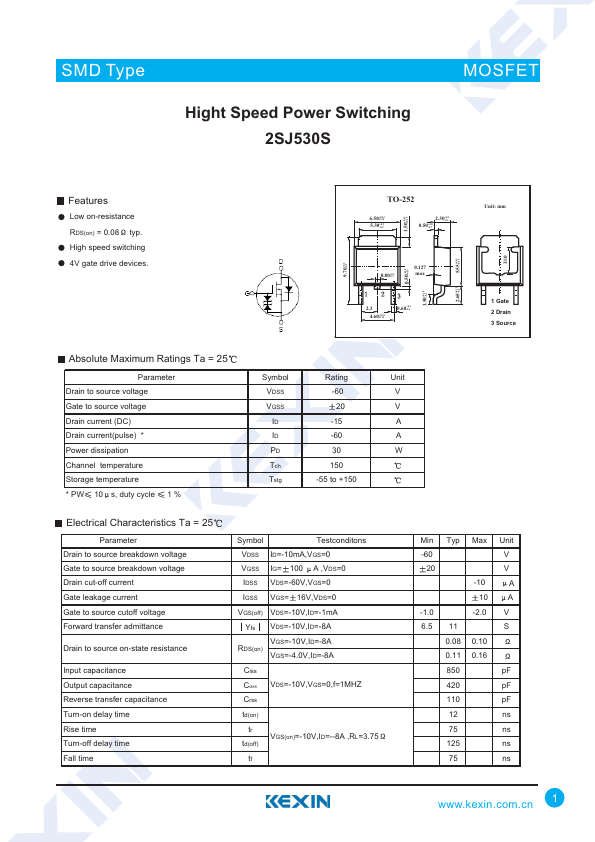

2SJ530S
2SJ530S is Hight Speed Power Switching manufactured by Kexin Semiconductor.
Features
Low on-resistance RDS(on) = 0.08 typ. High speed switching 4V gate drive devices.
+0.2 9.70 -0.2
TO-252
6.50+0.15 -0.15
5.30+0.2 -0.2
2.30+0.1 -0.1
0.50+0.8 -0.7
Unit: mm
+0.15 1.50 -0.15
+0.15 5.55 -0.15
0.80+0.1 -0.1
0.127 max
2.3 4.60+0.15
-0.15
0.60+0.1 -0.1
+0.15 0.50 -0.15
+0.28 1.50 -0.1
+0.25 2.65 -0.1
1 Gate 2 Drain 3 Source
Absolute Maximum Ratings Ta = 25
Parameter Drain to source voltage Gate to source voltage Drain current (DC) Drain current(pulse)
- Power dissipation Channel temperature Storage temperature
- PW 10 s, duty cycle 1 %
Symbol
Rating
Unit
VDSS
-60
VGSS
-15
-60...
