Renesas Electronics HSM88AS
Silicon Schottky Barrier Diode
| Part No. | HSM88AS |
|---|---|
| Datasheet | HSM88AS Download |
| Manufacturer |  Renesas Electronics |
| Description | Silicon Schottky Barrier Diode |
| Buy | Stock & Price |

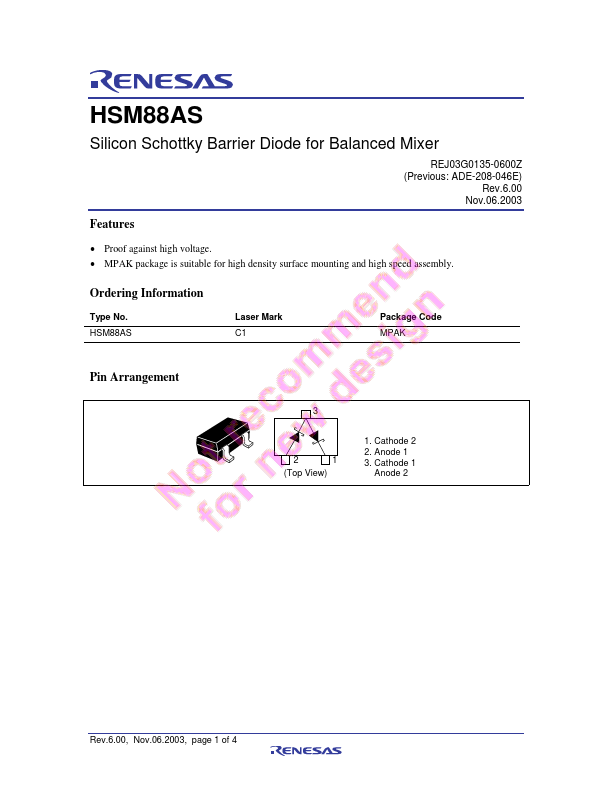

FEATURES
● Proof against high voltage.● MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HSM88AS Laser Mark C1 Package Code MPAK Pin Arrangement 3 2 1 (Top View) 1. Cathode 2 2. Anode 1 3. Cathode 1 Anode 2 Rev.6.00, Nov.06.2003, page 1 of 4 HSM88AS

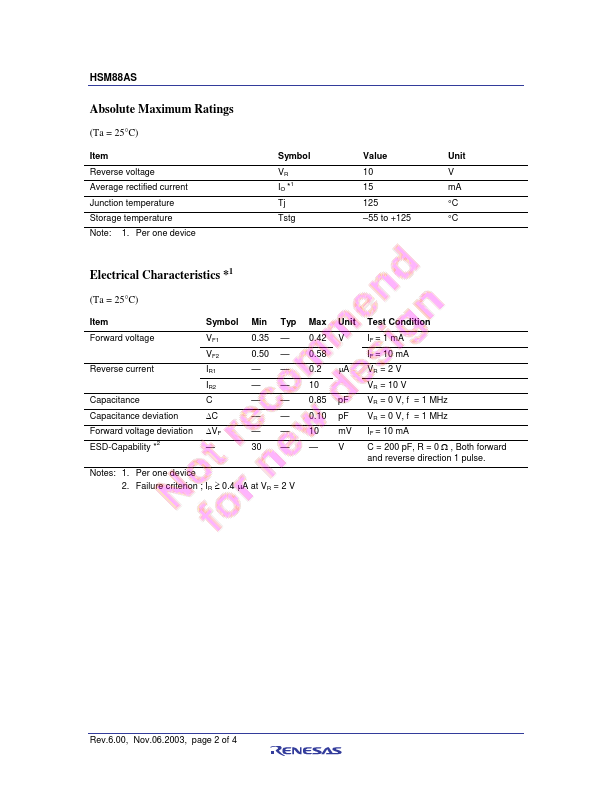

ABSOLUTE MAXIMUM RATINGS
(Ta = 25°C) Item Reverse voltage Average rectified current Junction temperature Storage temperature Note: 1. Per one device Symbol VR IO *1 Tj Tstg Value Unit 10 V 15 mA 125 °C –55 to +125 °CELECTRICAL CHARACTERISTICS
