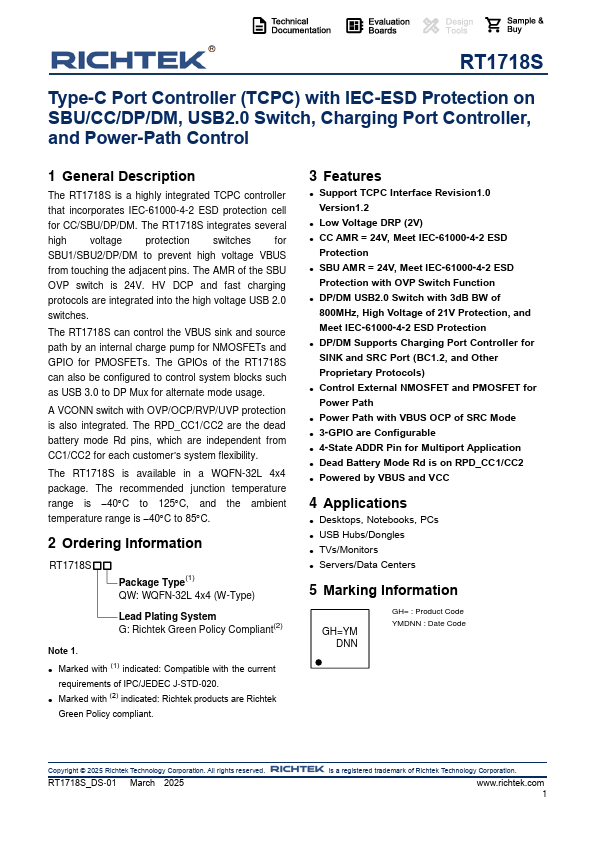

RT1718S
Description
The RT1718S is a highly integrated TCPC controller that incorporates IEC-61000-4-2 ESD protection cell for CC/SBU/DP/DM. The RT1718S integrates several high voltage protection switches for SBU1/SBU2/DP/DM to prevent high voltage VBUS from touching the adjacent pins.
Key Features
- Support TCPC Interface Revision1.0 Version1.2
- Low Voltage DRP (2V)
- CC AMR = 24V, Meet IEC-61000-4-2 ESD Protection
- SBU AMR = 24V, Meet IEC-61000-4-2 ESD Protection with OVP Switch Function
- DP/DM USB2.0 Switch with 3dB BW of 800MHz, High Voltage of 21V Protection, and Meet IEC-61000-4-2 ESD Protection
- DP/DM Supports Charging Port Controller for SINK and SRC Port (BC1.2, and Other Proprietary Protocols)
- Control External NMOSFET and PMOSFET for Power Path
- Power Path with VBUS OCP of SRC Mode
- 3-GPIO are Configurable
- 4-State ADDR Pin for Multiport Application
