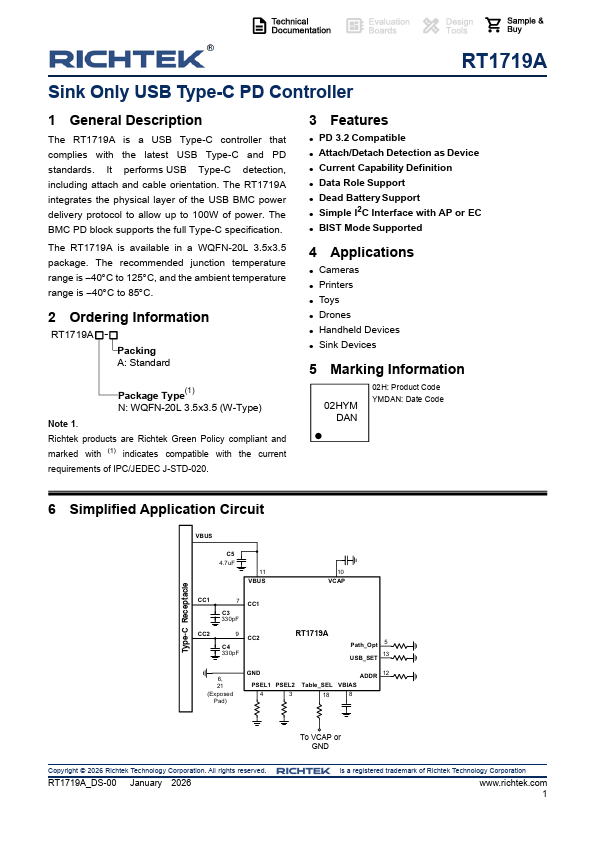

Sink Only USB Type-C PD Controller 1 General Description The RT1719A is a USB Type-C controller that plies with the latest USB Type-C and PD standards. It performs USB Type-C detection, including attach and cable orientation. The RT1719A integrates the physical layer of the USB BMC power delivery protocol to allow up to 100W of power. The BMC PD block supports the full Type-C specification. The RT1719A is available in a WQFN-20L 3.5x3.5 package. The remended junction temperature range is - 40C to 125C, and the ambient temperature range is - 40C to 85C. 2 Ordering Information - Packing A: Standard Package Type(1) N: WQFN-20L 3.5x3.5 (W-Type) Note 1. Richtek...
