Datasheet Details
| Part number | RT5035A |
|---|---|
| Manufacturer | Richtek |
| File Size | 1.13 MB |
| Description | 7+3 Channel DC/DC Converters |
| Datasheet | RT5035A-Richtek.pdf |
|
|
Overview: RT5035A/B 7+3 Channel DC/DC Converters with RTC and I2C Interface.
| Part number | RT5035A |
|---|---|
| Manufacturer | Richtek |
| File Size | 1.13 MB |
| Description | 7+3 Channel DC/DC Converters |
| Datasheet | RT5035A-Richtek.pdf |
|
|
|

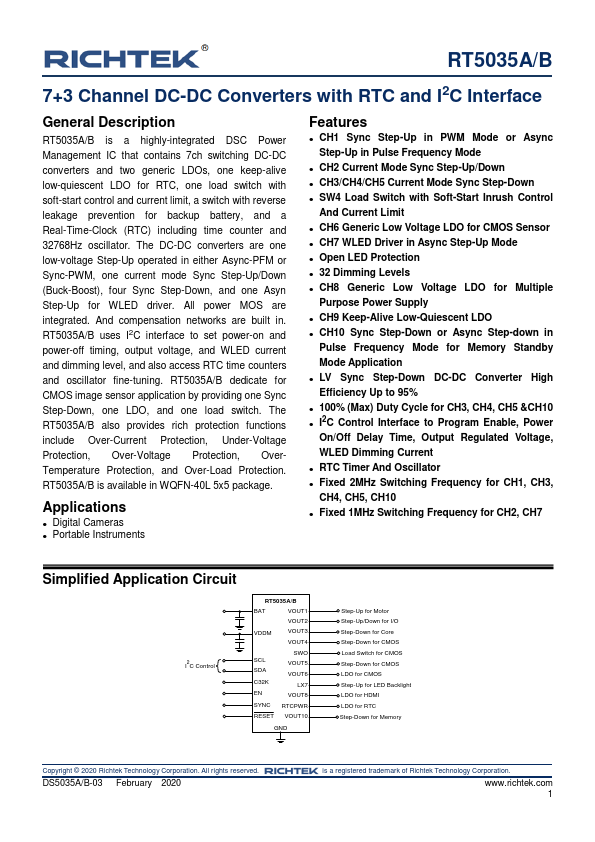

RT5035A/B is a highly-integrated DSC Power Management IC that contains 7ch switching DC/DC converters and two generic LDOs, one keep-alive low-quiescent LDO for RTC, one load switch with soft-start control and current limit, a switch with reverse leakage prevention for backup battery, and a Real-Time-Clock (RTC) including time counter and 32768Hz oscillator.
The DC/DC converters are one low-voltage Step-Up operated in either Async-PFM or Sync-PWM, one current mode Sync Step-Up/Down (Buck-Boost), four Sync Step-Down, and one Asyn Step-Up for WLED driver.
All power MOS are integrated.
