RT5035B - 7+3 Channel DC/DC Converters

This page provides the datasheet information for the RT5035B, a member of the RT5035A 7+3 Channel DC/DC Converters family.

Description

RT5035A/B is a highly-integrated DSC Power Management IC that contains 7ch switching DC/DC converters and two generic LDOs, one keep-alive low-quiescent LDO for RTC, one load switch with soft-start control and current limit, a switch with reverse leakage prevention for backup battery, and a Real-Tim

Features

  • CH1 Sync Step-Up in PWM Mode or Async Step-Up in Pulse Frequency Mode.
  • CH2 Current Mode Sync Step-Up/Down.
  • CH3/CH4/CH5 Current Mode Sync Step-Down.
  • SW4 Load Switch with Soft-Start Inrush Control And Current Limit.
  • CH6 Generic Low Voltage LDO for CMOS Sensor.
  • CH7 WLED Driver in Async Step-Up Mode.
  • Open LED Protection.
  • 32 Dimming Levels.
  • CH8 Generic Low Voltage LDO for Multiple Purpose Power Supply.
  • CH9 Keep-Alive Low-Quiescent LDO.
  • CH10 Sync.

📥 Download Datasheet

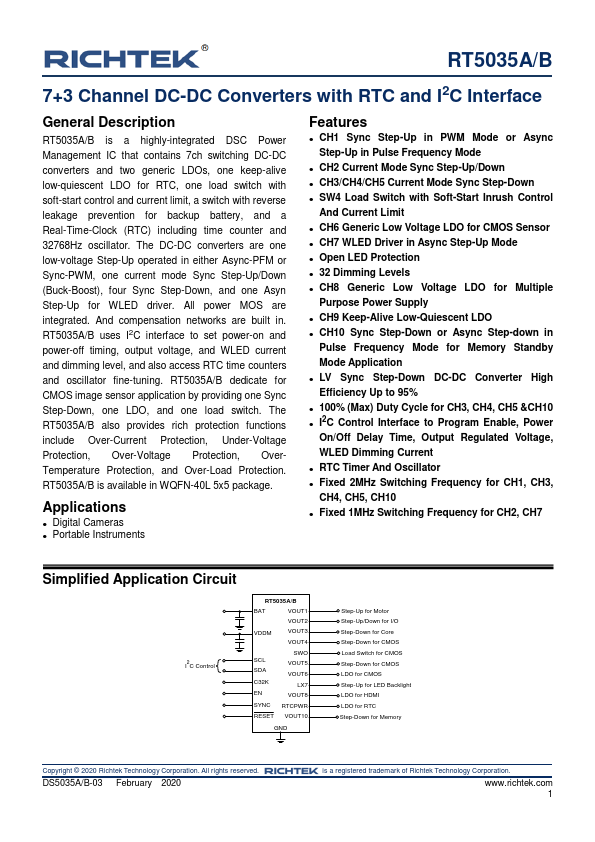

Datasheet preview – RT5035B

Datasheet Details

Part number RT5035B
Manufacturer Richtek
File Size 1.13 MB
Description 7+3 Channel DC/DC Converters
Datasheet download datasheet RT5035B Datasheet
Additional preview pages of the RT5035B datasheet.
