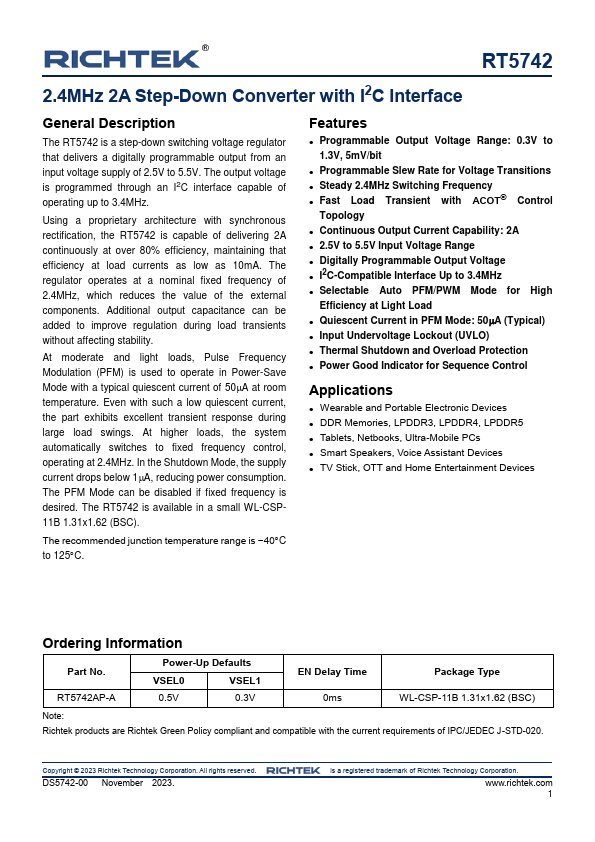

RT5742 Overview
Description
The RT5742 is a step-down switching voltage regulator that delivers a digitally programmable output from an input voltage supply of 2.5V to 5.5V. The output voltage is programmed through an I2C interface capable of operating up to 3.4MHz.
Key Features
- Programmable Output Voltage Range: 0.3V to 1.3V, 5mV/bit
- Programmable Slew Rate for Voltage Transitions
- Steady 2.4MHz Switching Frequency
- Fast Load Transient with ACOT® Control Topology
- Continuous Output Current Capability: 2A
