RT5746
RT5746 is 2.4MHz 4A/6A Step-Down Converter manufactured by Richtek.
- Part of the RT5744 comparator family.
- Part of the RT5744 comparator family.

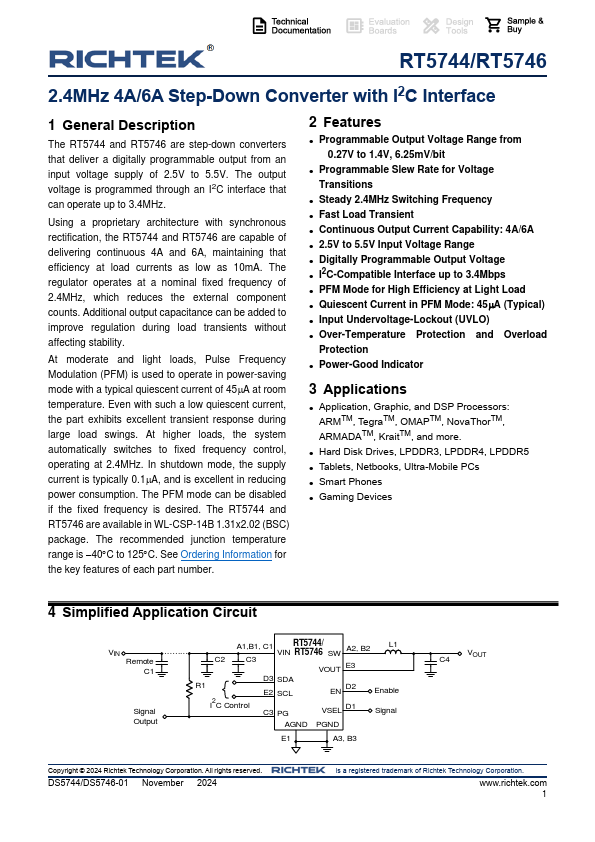

RT5744/RT5746
2.4MHz 4A/6A Step-Down Converter with I2C Interface
General Description
The RT5744 and RT5746 are step-down switching voltage regulators that deliver a digitally programmable output from an input voltage supply of 2.5V to 5.5V. The output voltage is programmed through an I2C interface that can operate up to 3.4MHz.
Using a proprietary architecture with synchronous rectification, the RT5744 and RT5746 are capable of delivering continuous 4A and 6A, maintaining that efficiency at load currents as low as 10mA. The regulator operates at a nominal fixed frequency of 2.4MHz, which reduces the external ponent counts. Additional output capacitance can be added to improve...
