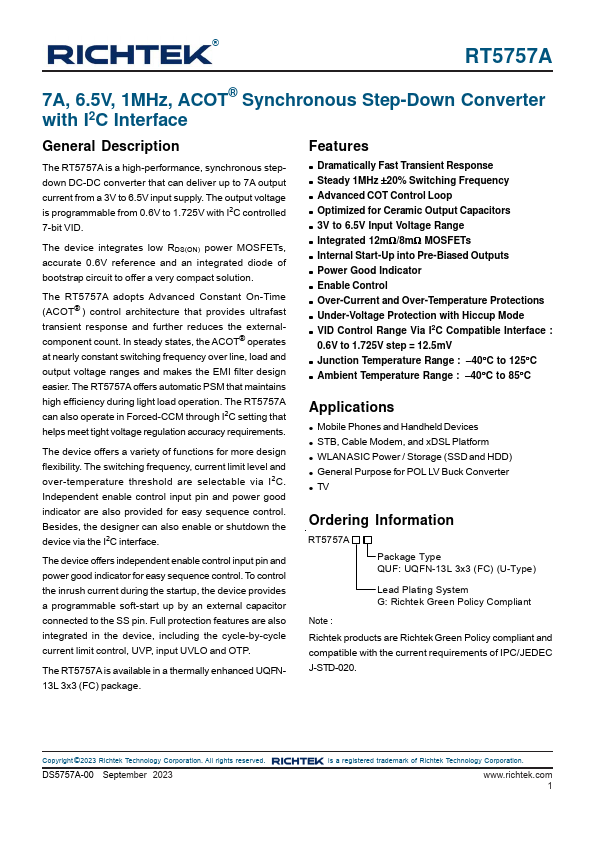

Description The RT5757A is a high-performance, synchronous stepdown DC-DC converter that can deliver up to 7A output current from a 3V to 6.5V input supply. The output voltage is programmable from 0.6V to 1.725V with I2C controlled 7-bit VID. The device integrates low RDS(ON) power MOSFETs, accurate 0.6V reference and an integrated diode of bootstrap circuit to offer a very pact solution. The RT5757A adopts Advanced Constant On-Time (ACOT® ) control architecture that provides ultrafast transient response and further reduces the externalponent count. In steady states, the ACOT® operates at nearly constant switching frequency over line, load and output voltage ranges and makes the EMI filter design easier. The RT5757A offers automatic PSM that maintains high efficiency during light load operation. The RT5757A can also operate in Forced-CCM through I2C setting that helps meet tight voltage regulation accuracy requirements. The device offers a variety of functions for more design flexibility. The switching frequency, current limit level and over-temperature threshold are selectable via I2C. Independent enable control input pin and power good indicator are also provided for easy sequence control. Besides, the designer can also enable or shutdown the device via the I2C interface. The device offers independent enable control input pin and power good indicator for easy sequence control. To control the inrush current during the startup, the device provides a programmable soft-start up by an external capacitor connected to the SS pin. Full protection features are also integrated in the device, including the cycle-by-cycle current limit control, UVP, input UVLO and OTP. The RT5757A is available in a thermally enhanced UQFN13L 3x3 (FC) package. Features - Dramatically Fast Transient Response - Steady 1MHz ±20% Switching Frequency - Advanced COT Control Loop - Optimized for Ceramic Output Capacitors - 3V to 6.5V Input Voltage Range - Integrated 12mΩ/8mΩ MOSFETs - Internal...
