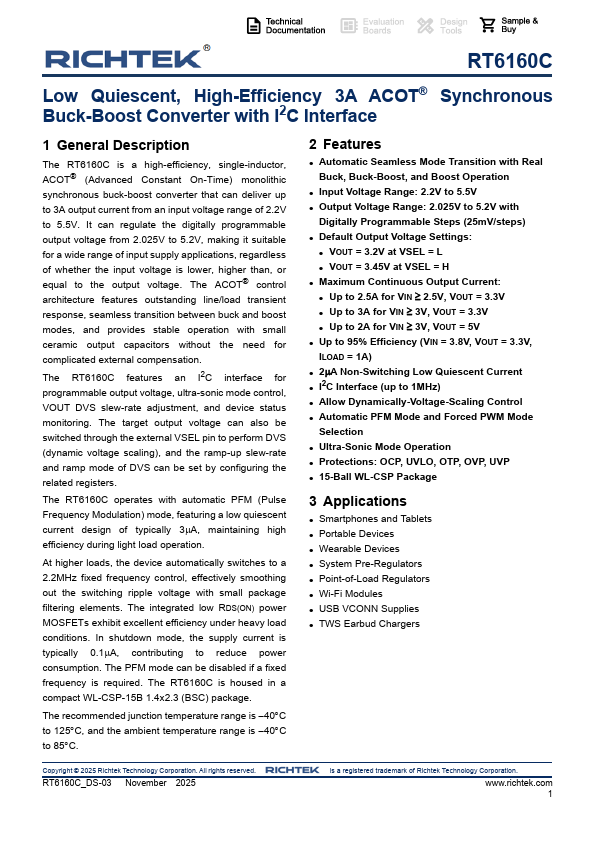

RT6160C Overview
Description
The RT6160C is a high-efficiency, single-inductor, ACOT® (Advanced Constant On-Time) monolithic synchronous buck-boost converter that can deliver up to 3A output current from an input voltage range of 2.2V to 5.5V. It can regulate the digitally programmable output voltage from 2.025V to 5.2V, making it suitable for a wide range of input supply applications, regardless of whether the input voltage is lower, higher than, or equal to the output voltage.
Key Features
- The integrated low RDS(ON) power MOSFETs exhibit excellent efficiency under heavy load conditions
- In shutdown mode, the supply current is typically 0.1A, contributing to reduce power consumption
- The PFM mode can be disabled if a fixed frequency is required
- The RT6160C is housed in a compact WL-CSP-15B 1.4x2.3 (BSC) package
- The recommended junction temperature range is -40°C to 125°C, and the ambient
