RT6301A - Complete LPDDR5/5X Memory Power Solution

General Description

The RT6301A is an integrated power management IC solution for LPDDR5 and LPDDR5X memory.

This device provides two single buck voltage regulators VDD2 (1.065V/8A) and VDDQ (0.52V/3A), and one load switch VDD1 (1.8V/1A).

Key Features

  • Wide Input Supply Range: 4.5V to 23V for HV Buck Converter.
  • Three High-Efficiency Output Regulators:.
  • VDD1 (Load Switch): 1.8V/1A.
  • VDD2 (HV Buck Converter): 1.065V/8A.
  • VDDQ (LV Buck Converter): 0.32V/3A or 0.52V/3A (Selectable by VSEL Pin).
  • 12A Peak Output Current for VDD2.
  • Compliant with LPDDR5/5X Power-On/Off Sequence in JEDEC Standard.
  • Stable Operation with POSCAP and MLCC Capacitors.
  • Fast Transient Response with ACOT® Control.
  • Diode Emulatio.

📥 Download Datasheet

Datasheet Details

Part number RT6301A
Manufacturer Richtek
File Size 1.68 MB
Description Complete LPDDR5/5X Memory Power Solution
Datasheet download datasheet RT6301A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RT600 Dual-core microcontroller NXP
RT6105X NPN SILICON RF POWER TRANSISTOR Advanced Semiconductor
RT6200G 600mA Synchronous Step-down DCDC Converter tokmas
RT6206 300mA LDO LINEAR VOLTAGE/REGULATORS Racetek
RT6588 REMOTE CONTROL ENCODER AND DECODER PAIRED Rato

Other Datasheets by Richtek

Part Number Description
RT6300A Complete LPDDR5/5X Memory Power Solution
RT6310 23V Synchronous Step-Down Converter
RT6316B 23V Synchronous Step-Down Converter
RT6316C 23V Synchronous Step-Down Converter
RT6318B 23V Synchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

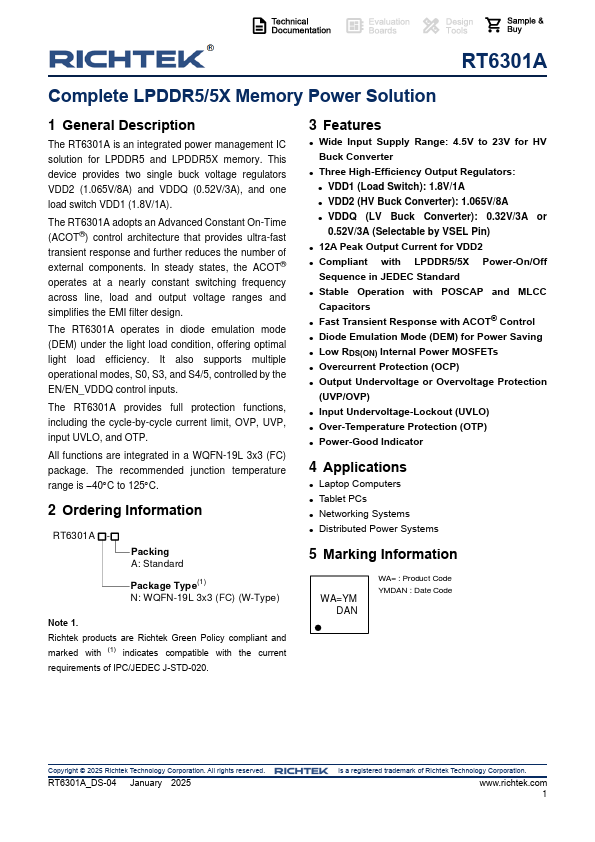

RT6301A Complete LPDDR5/5X Memory Power Solution 1 General Description The RT6301A is an integrated power management IC solution for LPDDR5 and LPDDR5X memory. This device provides two single buck voltage regulators VDD2 (1.065V/8A) and VDDQ (0.52V/3A), and one load switch VDD1 (1.8V/1A). The RT6301A adopts an Advanced Constant On-Time (ACOT® ) control architecture that provides ultra-fast transient response and further reduces the number of external components. In steady states, the ACOT® operates at a nearly constant switching frequency across line, load and output voltage ranges and simplifies the EMI filter design. The RT6301A operates in diode emulation mode (DEM) under the light load condition, offering optimal light load efficiency.
