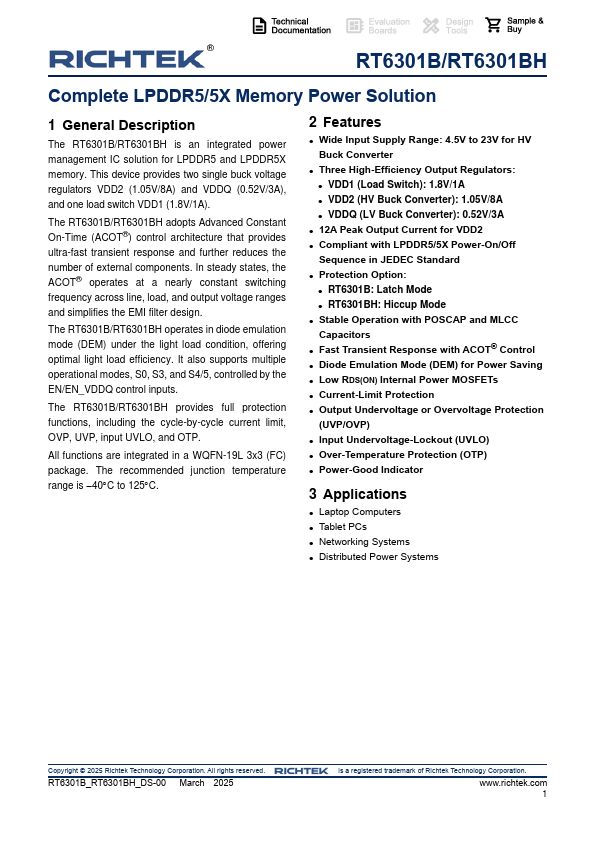

RT6301B Overview
Description
The RT6301B/RT6301BH is an integrated power management IC solution for LPDDR5 and LPDDR5X memory. This device provides two single buck voltage regulators VDD2 (1.05V/8A) and VDDQ (0.52V/3A), and one load switch VDD1 (1.8V/1A).
Key Features
- Wide Input Supply Range: 4.5V to 23V for HV Buck Converter
- Three High-Efficiency Output Regulators
- VDD1 (Load Switch): 1.8V/1A
- VDD2 (HV Buck Converter): 1.05V/8A
- VDDQ (LV Buck Converter): 0.52V/3A
- 12A Peak Output Current for VDD2
- Compliant with LPDDR5/5X Power-On/Off Sequence in JEDEC Standard
- Protection Option
- RT6301B: Latch Mode
- RT6301BH: Hiccup Mode
