RT6338 - 23V Synchronous Step-Down Converter

Description

The RT6338 family are high efficiency synchronous step-down DC-DC converters with pseudo constant switching frequency 500kHz and deliver up to 8A output current.

The RT6338A/B and RT6338AH/BH operate from 4.5V to 23V input voltage.

Features

  • are also integrated in the device, including the cycle-by-cycle current limit, OVP, UVP, input UVLO and OTP. All above functions are integrated in a UQFN-23L 3x3 (FC) package. The recommended junction temperature is.
  • 40C to 125C. 2 Features.
  • Input Voltage Range.
  • RT6338A/B and RT6338AH/BH: 4.5V to 23V.
  • RT6338C/CH: 5.2V to 23V.
  • Output Voltage.
  • RT6338A/AH: 0.6V to 5.5V.
  • RT6338B/BH: 3.3V.
  • RT6338C/CH: 5.1V.
  • 8A Continuous Output Current.

📥 Download Datasheet

Datasheet Details

Part number RT6338
Manufacturer Richtek
File Size 1.50 MB
Description 23V Synchronous Step-Down Converter
Datasheet download datasheet RT6338 Datasheet

📁 Similar Datasheet

  • RT600 - Dual-core microcontroller (NXP)
  • RT6105X - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
  • RT6200G - 600mA Synchronous Step-down DCDC Converter (tokmas)
  • RT6206 - 300mA LDO LINEAR VOLTAGE/REGULATORS (Racetek)
  • RT6588 - REMOTE CONTROL ENCODER AND DECODER PAIRED (Rato)
Other Datasheets by Richtek
  • RT6338E - 23V Synchronous Step-Down Converter
  • RT6338EH - 23V Synchronous Step-Down Converter
  • RT6337 - 23V Synchronous Step-Down Converter
  • RT6300A - Complete LPDDR5/5X Memory Power Solution
  • RT6301A - Complete LPDDR5/5X Memory Power Solution
  • RT6310 - 23V Synchronous Step-Down Converter
  • RT6316B - 23V Synchronous Step-Down Converter
  • RT6316C - 23V Synchronous Step-Down Converter

Full PDF Text Transcription

Click to expand full text

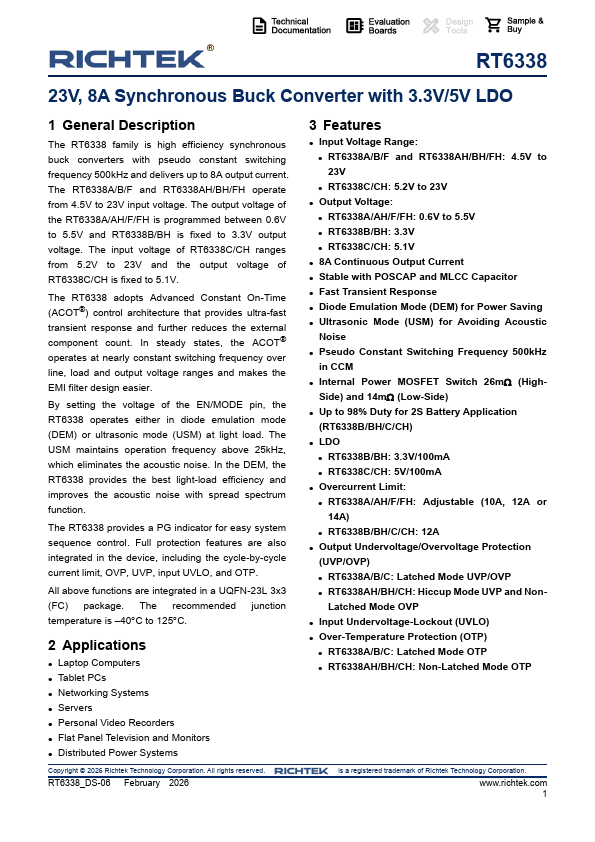

RT6338 8A, 23V Synchronous Step-Down Converter with 3.3V/5V LDO 1 General Description The RT6338 family are high efficiency synchronous step-down DC-DC converters with pseudo constant switching frequency 500kHz and deliver up to 8A output current. The RT6338A/B and RT6338AH/BH operate from 4.5V to 23V input voltage. The output voltage of RT6338A/AH is programmed between 0.6V to 5.5V and RT6338B/BH is fixed to 3.3V output voltage. The input voltage of RT6338C/CH ranges from 5.2V to 23V and the output voltage of RT6338C/CH is fixed to 5.1V. The RT6338 adopts Advanced Constant On-Time (ACOT® ) control architecture that provides ultra-fast transient response and further reduces the external component count.
