RK2710 is integrated system-on-chip manufactured by Rockchip.
Overview
1.1 Overview
The RK2710 is an integrated system-on-chip with Dual Core architecture, which will focus on portable DAB, DVB-T solution with multimedia player. The Dual-Core architecture integrated ARM7EJC and DSP micro processor and by co-operating of those two CPUs, RK27xx can get high performance on Low-Power platform.
The RK2710 solution is base on RK27xx PMP solution, also add DAB demodulator architecture and DVB-T decoder.

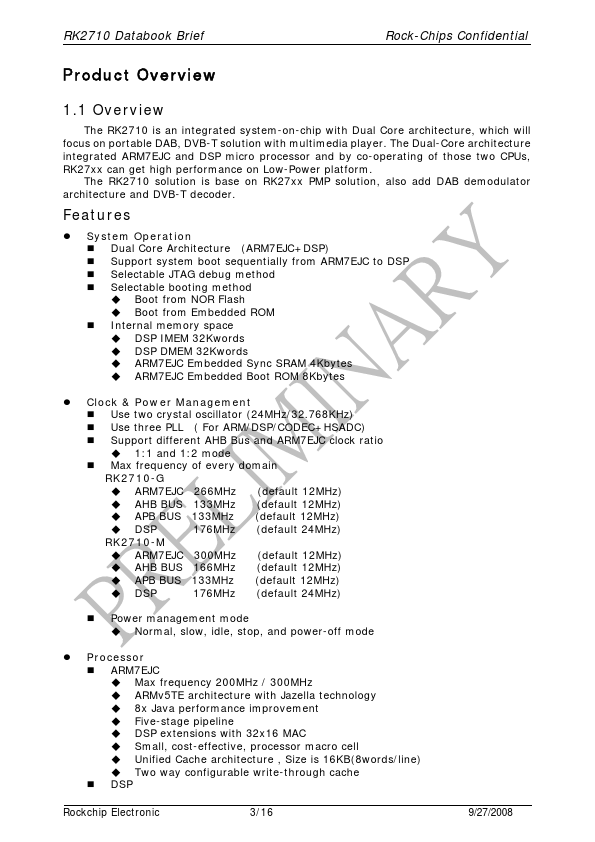

Features z System Operation
- Dual Core Architecture (ARM7EJC+DSP)
- Support system boot sequentially from ARM7EJC to DSP
- Selectable JTAG debug method
- Selectable booting method Boot from NOR Flash Boot from Embedded ROM
- Internal memory space DSP IMEM 32Kwords DSP DMEM 32Kwords ARM7EJC Embedded Sync SRAM 4Kbytes ARM7EJC Embedded Boot ROM 8Kbytes z Clock & Power Management
- Use two crystal oscillator (24MHz/32.768KHz)
- Use three PLL ( For ARM/DSP/CODEC+HSADC)
- Support different AHB Bus and ARM7EJC clock ratio
1:1 and 1:2 mode
- Max frequency of every domain
RK2710-G
ARM7EJC 266MHz AHB BUS 133MHz
(default 12MHz) (default 12MHz)
APB BUS 133MHz (default 12MHz)
DSP
176MHz (default 24MHz)
RK2710-M
ARM7EJC 300MHz (default 12MHz)
AHB BUS 166MHz (default 12MHz) APB BUS 133MHz (default 12MHz)
DSP
176MHz (default 24MHz)
- Power management mode Normal, slow, idle, stop, and power-off mode z Processor
- ARM7EJC Max frequency 200MHz / 300MHz ARMv5TE architecture with Jazella technology 8x Java performance improvement Five-stage pipeline DSP extensions with 32x16 MAC Small, cost-effective, processor macro cell Unified Cache architecture , Size is 16KB(8words/line) Two way configurable write-through cache
- DSP
Rockchip Electronic
3/16
9/27/2008
RK2710 Databook Brief
Rock-Chips Confidential
RISC-based four-way superscalar architecture Eight-stage pipeline Support 4GB address space
- Dual-Core munication unit Support dual cores system Mailbox handshaking with...
