2SB1566
2SB1566 is Power Transistor manufactured by ROHM.
现货库存、技术资料、百科信息、热点资讯，精彩尽在鼎好!
Transistors
For Power Amplification (- 60V,
- 3A)
2SB1566 zStructure PNP Silicon Epitaxial Planar Transistor zFeatures

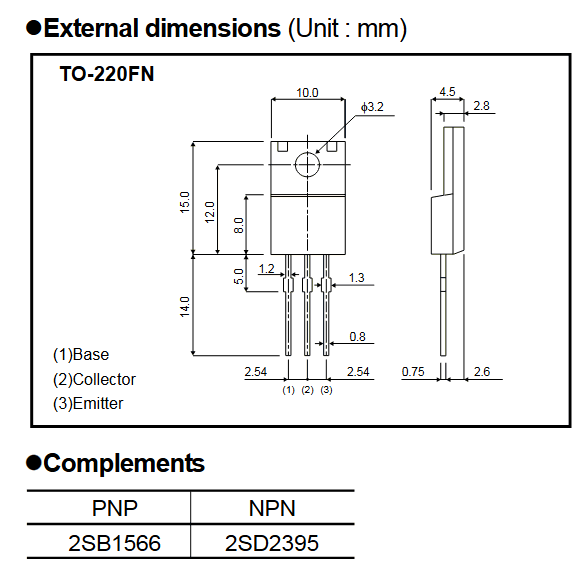

1) Low VCE (sat). 2) Wide SOA. zApplications Relay drive DC-DC converter Stabilized power supply zExternal dimensions (Unit : mm)
TO-220FN
10.0 φ3.2
4.5 2.8
15.0 12.0 8.0
14.0 5.0
1.2 1.3
(1)Base (2)Collector (3)Emitter
2.54 2.54 (1) (2) (3)
0.75 zplements
PNP 2SB1566
NPN 2SD2395
2.6...
