Datasheet Summary
Regulator ICs

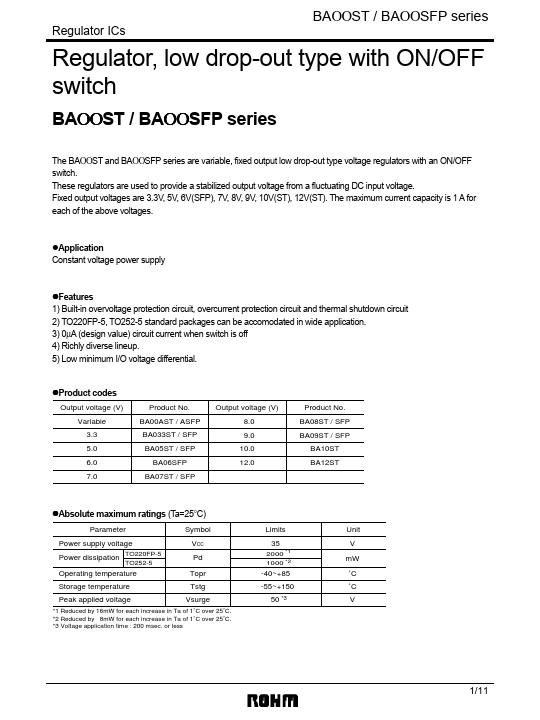

BAΟΟST / BAΟΟSFP series
Regulator, low drop-out type with ON/OFF switch
BAΟΟST / BAΟΟSFP series
The BAΟΟST and BAΟΟSFP series are variable, fixed output low drop-out type voltage regulators with an ON/OFF switch. These regulators are used to provide a stabilized output voltage from a fluctuating DC input voltage. Fixed output voltages are 3.3V, 5V, 6V(SFP), 7V, 8V, 9V, 10V(ST), 12V(ST). The maximum current capacity is 1 A for each of the above voltages.
!Application Constant voltage power supply
!Features
1) Built-in overvoltage protection circuit, overcurrent protection circuit and thermal shutdown circuit 2) TO220FP-5, TO252-5 standard packages can be acodated in...
