BA028LBSG - Super-mini package regulator

Download the BA028LBSG datasheet PDF. This datasheet also covers the BA050LBSG variant, as both devices belong to the same super-mini package regulator family and are provided as variant models within a single manufacturer datasheet.

General Description

Pin No.

Key Features

  • 1) Internal output transistor (IO=150mA) 2) Internal temperature protection circuit 3) Power-saving function enables designs with low current consumption 4) High level of ripple rejection (R. R. =66dB) 5) SMP5 super-mini package enables space-saving designs 6) Low I / O voltage differential (90mV Typ. at IO=50mA) !Super-mini regulator lineup Series 2.8 BA ∗" Output voltage (V) 2.9 3.0 3.2 3.3 3.6 3.8 4.0 5.0 LBSG " indicates the output voltage value. (Example : For 2.8V output, BA028LBSG) !Abs.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BA050LBSG_Rohm.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BA028LBSG
Manufacturer ROHM
File Size 143.36 KB
Description Super-mini package regulator
Datasheet download datasheet BA028LBSG Datasheet

Other Datasheets by ROHM

Part Number Description
BA028LBSG Super-mini package regulator IC
BA000LBSG Super-mini package regulator IC
BA00BC0WF LDO Regulator With Shutdown Circuit
BA00BC0WFP 1.0A Low-Dropout Voltage Regulator
BA00BC0WFP-E2 1A Variable/Fixed Output LDO Regulators
BA00BC0WFPWT Low Voltage Variable Output LDO Regulator
BA00BC0WT 1A Variable/Fixed Output LDO Regulators
BA00BC0WT-V5 1.0A Low-Dropout Voltage Regulator
BA00BC0WT-V5 1A Variable/Fixed Output LDO Regulators
BA00CC0WCP-V5 Dropout Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

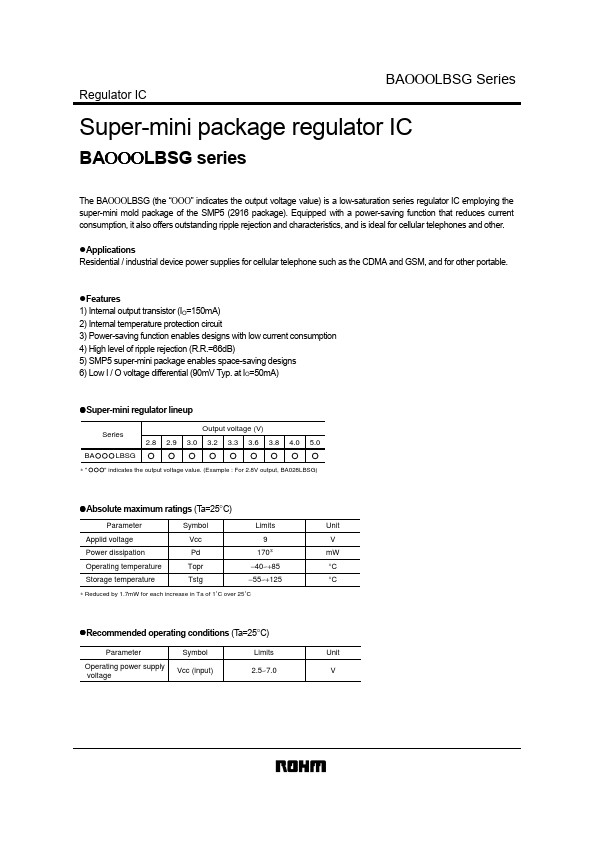

www.DataSheet4U.com Regulator IC BAΟΟΟLBSG series Super-mini package regulator IC BAΟΟΟLBSG series The BAΟΟΟLBSG (the “ΟΟΟ” indicates the output voltage value) is a low-saturation series regulator IC employing the super-mini mold package of the SMP5 (2916 package). Equipped with a power-saving function that reduces current consumption, it also offers outstanding ripple rejection and characteristics, and is ideal for cellular telephones and other. !Applications Residential / industrial device power supplies for cellular telephone such as the CDMA and GSM, and for other portable. !Features 1) Internal output transistor (IO=150mA) 2) Internal temperature protection circuit 3) Power-saving function enables designs with low current consumption 4) High level of ripple rejection (R.R.
