MS5192T - 16-/24-Bit ADC

Description

The MS5192T/MS5193T is a 16bit/24bit ADC with low power dissipation, low noise, three differential input channels.

It integrates input buffer and low-noise instrumentation amplifier.

When the gain is set to 64 and the update rate is 4.17Hz, the root mean square noise is 25nV.

Features

  • RMS Noise : 25nV @4.17Hz ; 30nV@16.7Hz.
  • Power Dissipation : 350μA (Typ. ).
  • Integrated PGA.
  • Integrated Voltage Reference with Low Temperature Drift.
  • Update Rate : 4.17Hz to 470Hz.
  • Integrated 50Hz/60Hz Rejection Filter.
  • Integrated Programmable Current Source.
  • Integrated Bias Voltage Generator.
  • Power Supply : 2.7V to 5.25V.
  • Operating Temperature Range : -40°C to 105°C.

📥 Download Datasheet

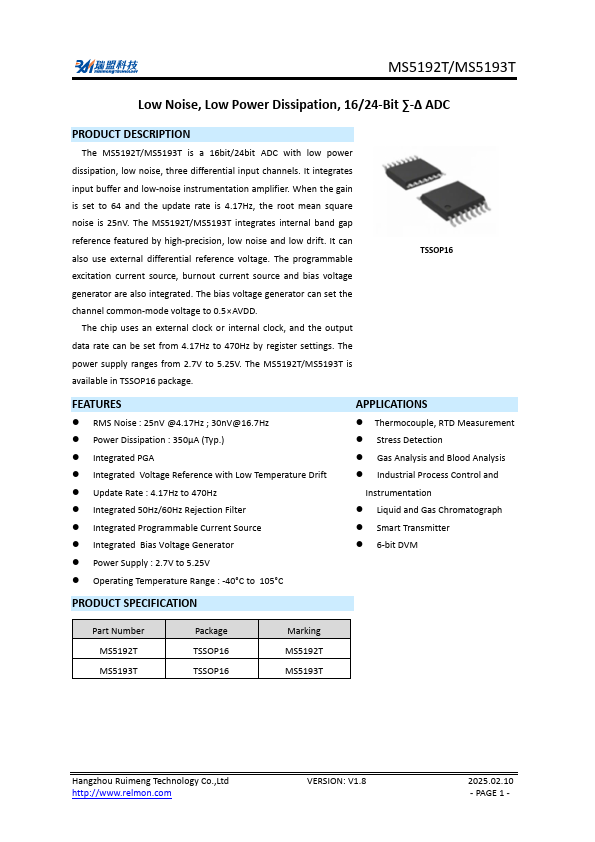

Datasheet preview – MS5192T

Datasheet Details

Part number MS5192T
Manufacturer Ruimeng
File Size 547.88 KB
Description 16-/24-Bit ADC
Datasheet download datasheet MS5192T Datasheet

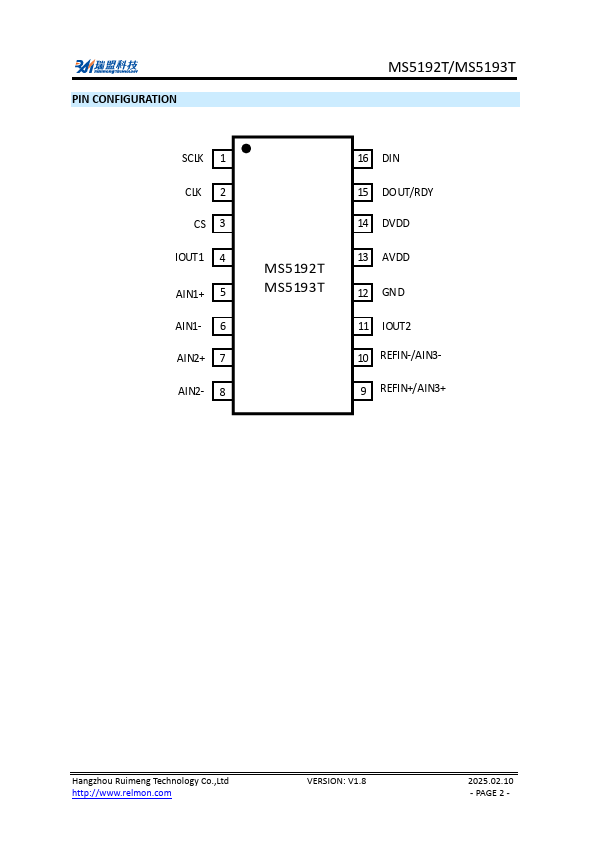

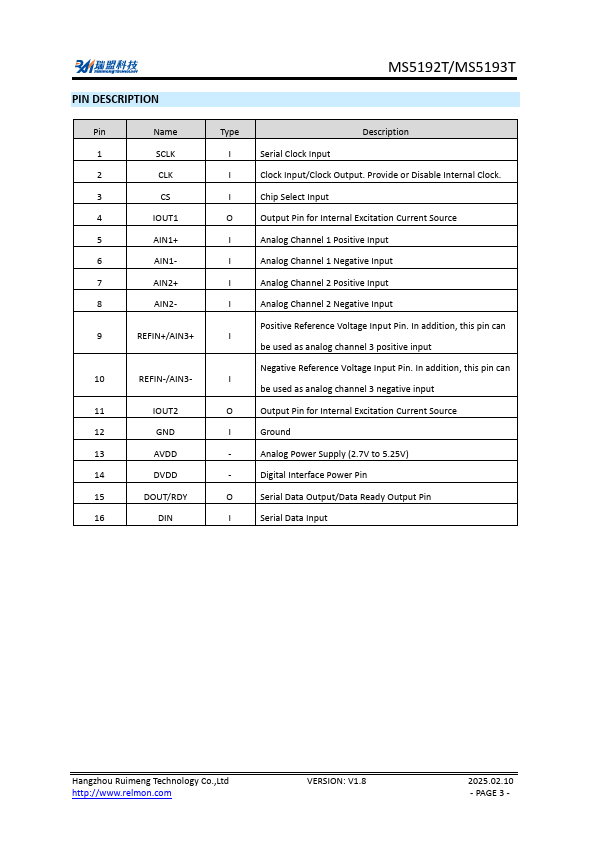

Additional preview pages of the MS5192T datasheet.

📁 Similar Datasheet

  • MS51957 - Screw (Military Standard)
  • MS51957D - Corrosion Resistant Steel (Military Specification)
  • MS51958 - Screw (Military Standard)
  • MS51959 - MACHINE SCREW (Aircraft)
  • MS51959 - SCREW (ETC)
  • MS51959D - SCREW (ETC)
  • MS51960D - SCREW (ETC)
  • MS510 - 5 Amp Schottky Rectifier (Microsemi Corporation)
  • MS5168 - ZigBee Module (Meshreen)
  • MS5168-M00 - ZigBee Module (Meshreen)
Other Datasheets by Ruimeng
  • MS5193T - 16-/24-Bit ADC
  • MS5194T - Low Noise Low Power Dissipation ADC
  • MS5195T - Low Noise Low Power Dissipation ADC
  • MS5175 - 16-bit built-in reference analog-to-digital converter
  • MS5182N - 16bit 4/8-Channel SAR ADC
  • MS5189N - 16bit 4/8-Channel SAR ADC
  • MS5213T - 16-bit Analog to Digital Converter
  • MS5224D - 2.7V to 5.5V 12-bit four-channel analog-to-digital converter

Full PDF Text Transcription

Click to expand full text
MS5192T/MS5193T Low Noise, Low Power Dissipation, 16/24-Bit ∑-Δ ADC PRODUCT DESCRIPTION The MS5192T/MS5193T is a 16bit/24bit ADC with low power dissipation, low noise, three differential input channels. It integrates input buffer and low-noise instrumentation amplifier. When the gain is set to 64 and the update rate is 4.17Hz, the root mean square noise is 25nV. The MS5192T/MS5193T integrates internal band gap reference featured by high-precision, low noise and low drift. It can also use external differential reference voltage. The programmable excitation current source, burnout current source and bias voltage generator are also integrated. The bias voltage generator can set the channel common-mode voltage to 0.5×AVDD.
