MS5193T - 16-/24-Bit ADC

This page provides the datasheet information for the MS5193T, a member of the MS5192T 16-/24-Bit ADC family.

Description

The MS5192T/MS5193T is a 16bit/24bit ADC with low power dissipation, low noise, three differential input channels.

It integrates input buffer and low-noise instrumentation amplifier.

When the gain is set to 64 and the update rate is 4.17Hz, the root mean square noise is 25nV.

Features

  • RMS Noise : 25nV @4.17Hz ; 30nV@16.7Hz.
  • Power Dissipation : 350μA (Typ. ).
  • Integrated PGA.
  • Integrated Voltage Reference with Low Temperature Drift.
  • Update Rate : 4.17Hz to 470Hz.
  • Integrated 50Hz/60Hz Rejection Filter.
  • Integrated Programmable Current Source.
  • Integrated Bias Voltage Generator.
  • Power Supply : 2.7V to 5.25V.
  • Operating Temperature Range : -40°C to 105°C.

📥 Download Datasheet

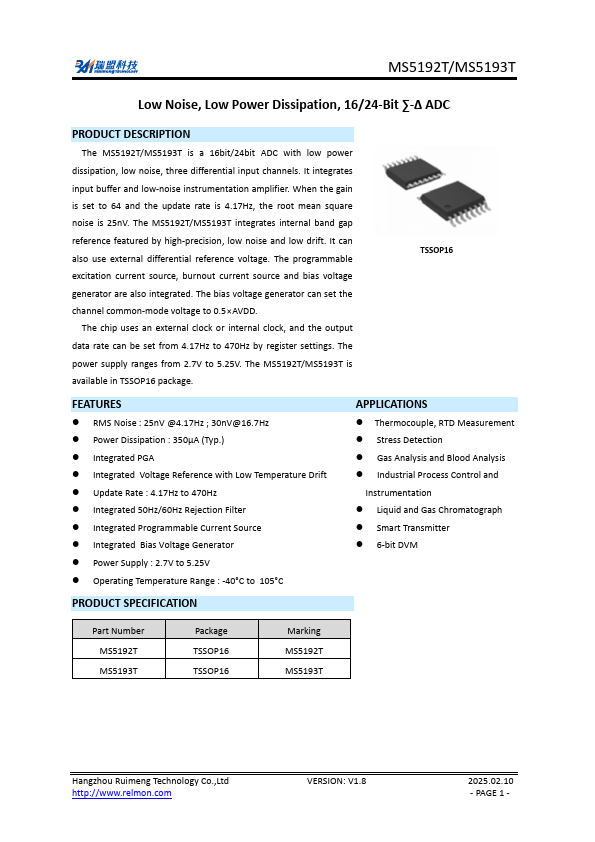

Datasheet preview – MS5193T

Datasheet Details

Part number MS5193T
Manufacturer Ruimeng
File Size 547.88 KB
Description 16-/24-Bit ADC
Datasheet download datasheet MS5193T Datasheet

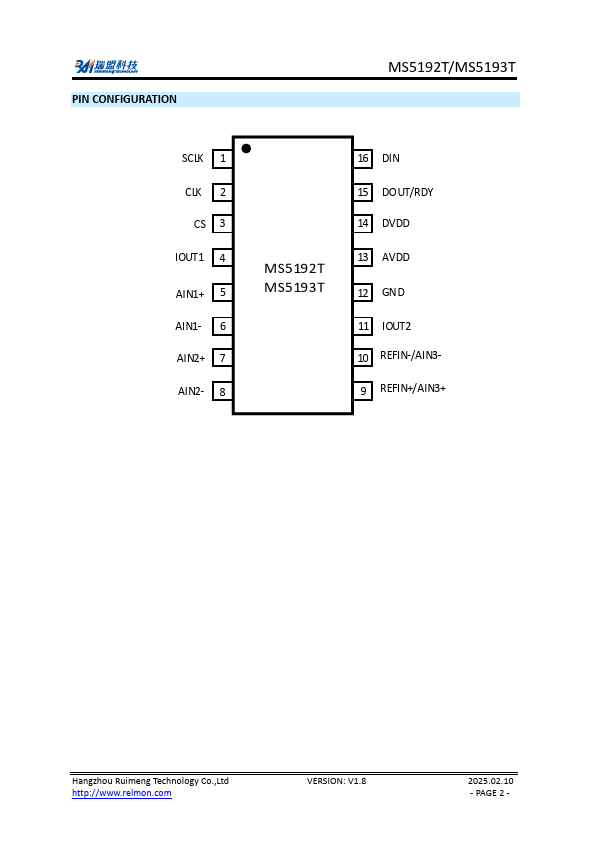

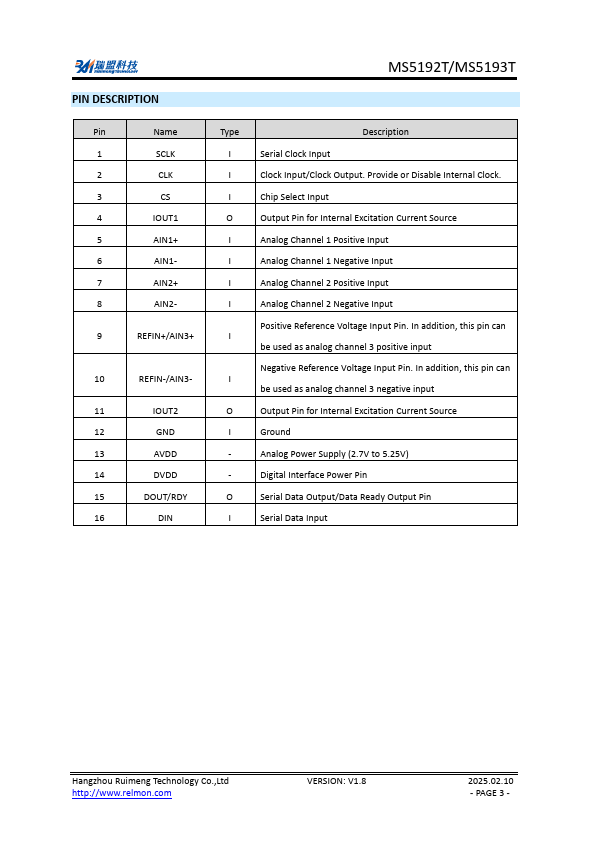

Additional preview pages of the MS5193T datasheet.
