MS5221M - 12-Bit Single-Channel DAC

Download the MS5221M datasheet PDF. This datasheet also covers the MS5221 variant, as both devices belong to the same 12-bit single-channel dac family and are provided as variant models within a single manufacturer datasheet.

General Description

The MS5221/5221M is a 12bit, single-channel output voltage DAC.

The interface uses the three-wire serial port mode, and it can be compatible with TMS320, SPI, QSPI and Microwire serial port.

The MS5221/5221M has 16bit control data, including control byte and 12bit DAC data.

Key Features

  • 12bit Resolution.
  • Programmable Setup Time: 3μs or 9μs.
  • Compatible with TMS320, SPI and Microwire Interface.
  • Internal Power on Reset.
  • Integrated REF Buffer.
  • Output Range: Twice the Reference Voltage.
  • Not Sensitive to Temperature.
  • Software, Hardware Power down.
  • Power Supply :2.7V∼5.5V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS5221-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS5221M
Manufacturer Ruimeng
File Size 531.31 KB
Description 12-Bit Single-Channel DAC
Datasheet download datasheet MS5221M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS500 Surface Mount Si-Bridge-Rectifiers Diotec Semiconductor
MS508 5 Amp Schottky Rectifier Microsemi Corporation
MS509 5 Amp Schottky Rectifier Microsemi Corporation
MS510 5 Amp Schottky Rectifier Microsemi Corporation
MS5168 ZigBee Module Meshreen

Other Datasheets by Ruimeng

Part Number Description
MS5221 12-Bit Single-Channel DAC
MS5224D 2.7V to 5.5V 12-bit four-channel analog-to-digital converter
MS5213T 16-bit Analog to Digital Converter
MS5281D 24bit 192kHz Dual Channel Differential Digital to Analog Converter
MS5175 16-bit built-in reference analog-to-digital converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

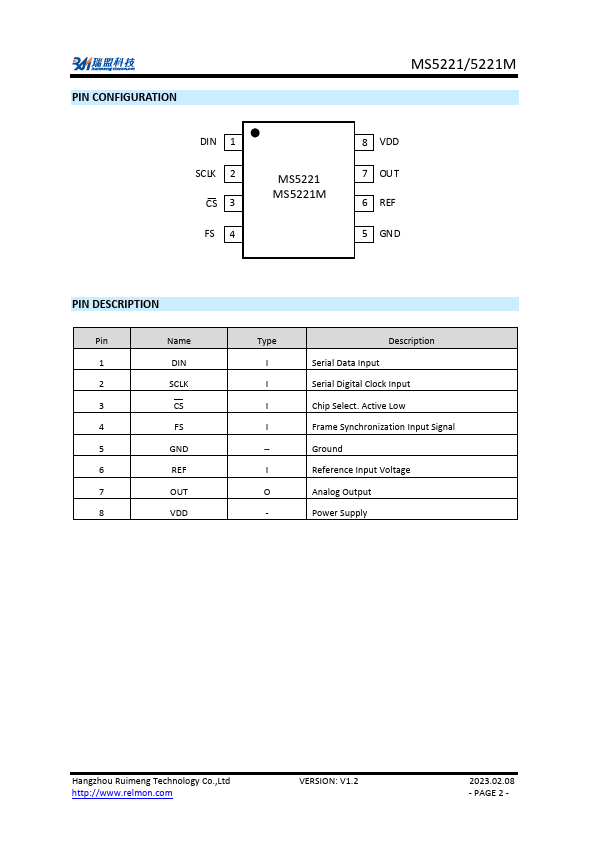

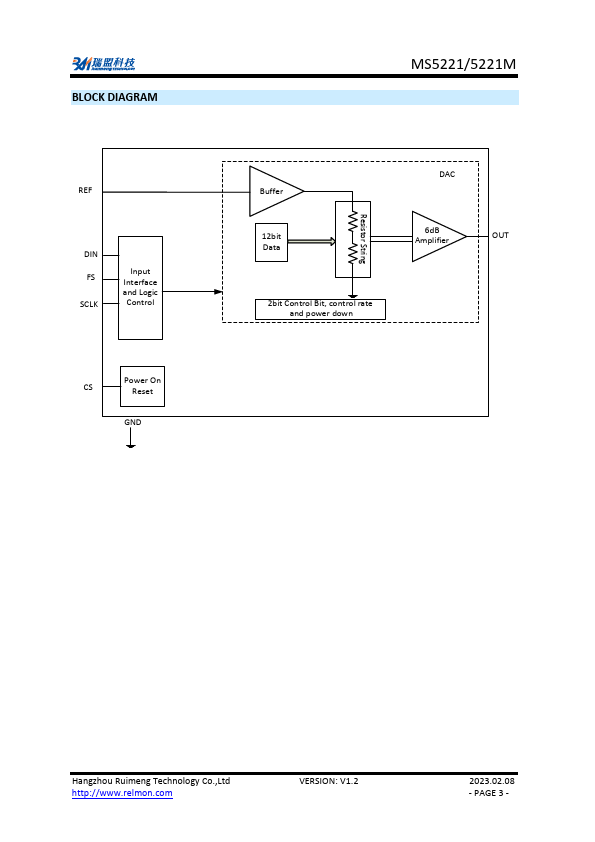

MS5221/5221M 2.7V to 5.5V, 12Bit Single-Channel DAC PRODUCT DESCRIPTION The MS5221/5221M is a 12bit, single-channel output voltage DAC. The interface uses the three-wire serial port mode, and it can be compatible with TMS320, SPI, QSPI and Microwire serial port. The MS5221/5221M has 16bit control data, including control byte and 12bit DAC data. The power supply range is 2.7V to 5.5V. The output of integrated resistor string is connected to a class AB, rail-to-rail output amplifier with 6dB gain. The output buffer improves the stability and reduces the setup time. The MS5221 is available in SOP8 package and The MS5221M is available in MSOP8 package.
