MS5541A - 2.7V to 5.5V 16-Bit DAC

This page provides the datasheet information for the MS5541A, a member of the MS5541 2.7V to 5.5V 16-Bit DAC family.

Datasheet Summary

Description

The MS5541/MS5542 is a single-channel, 16-bit, serial input and voltage output digital-to-analog converter (DAC).

It operates from single power supply with 2.7V to 5.5V, and the output range is from 0V to VREF.

Within the output range, the monotonicity is ensured.

Features

  • including short setup time, low power dissipation and low offset error. In addition, due to the low noise and low glitch characteristics, the MS5541/MS5542 is suitable for several terminal systems. The MS5542 could operate in bipolar mode and generate VREF output amplitude. It has Kelvin sense connection used for reference voltage and analog ground pin to reduce layout sensitivity.

📥 Download Datasheet

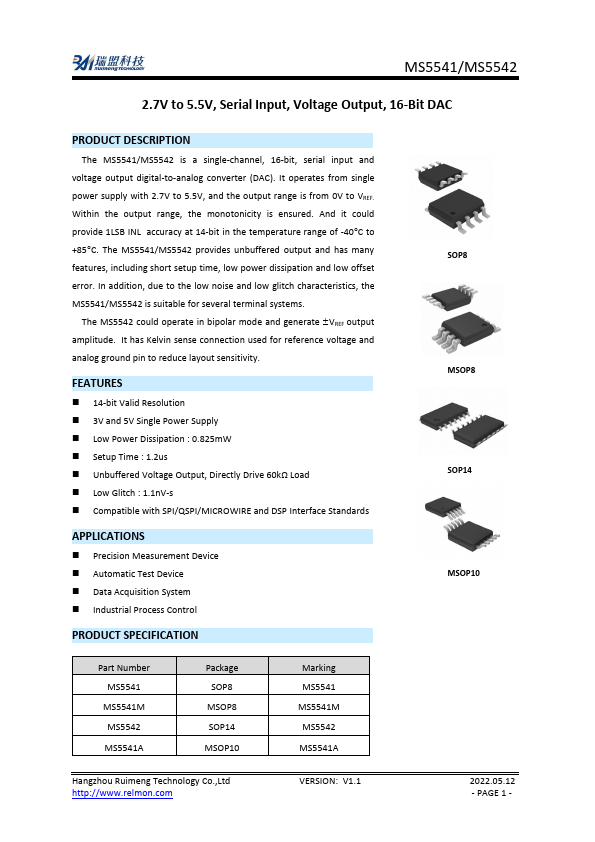

Datasheet preview – MS5541A

Datasheet Details

Part number MS5541A
Manufacturer Ruimeng
File Size 1.96 MB
Description 2.7V to 5.5V 16-Bit DAC
Datasheet download datasheet MS5541A Datasheet

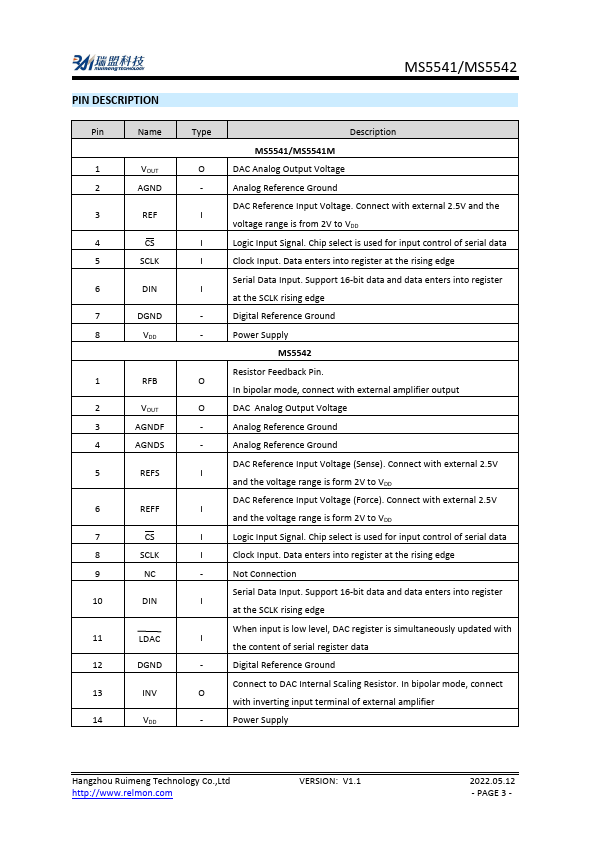

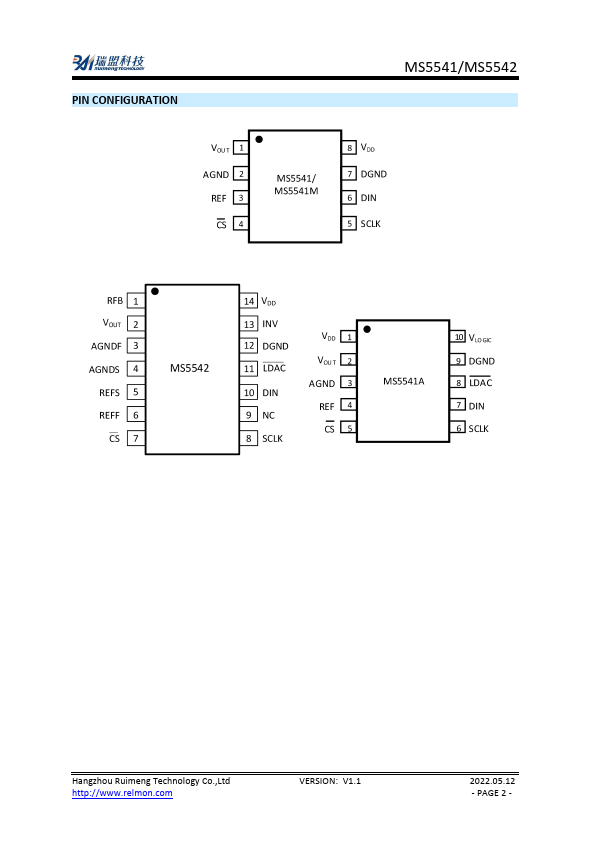

Additional preview pages of the MS5541A datasheet.

📁 Similar Datasheet

  • MS5541-30C - MINIATURE 30 bar MODULE (Intersema)
  • MS5541-30C - Miniature 30 bar Module (TE)
  • MS5541B - MINIATURE 14 bar MODULE (Intersema)
  • MS5541C - Miniature 14 bar Module (TE)
  • MS5541C - MINIATURE 14 bar MODULE (Intersema)
  • MS5540B - MINIATURE BAROMETER MODULE (Intersema)
  • MS5540C - Miniature Barometer Module (TE)
  • MS5540C - MINIATURE BAROMETER MODULE (Intersema)
  • MS5525DSO - Digital Small Outline pressure sensors (TE)
  • MS5534A - BAROMETER MODULE (ETC)
Other Datasheets by Ruimeng
  • MS5541 - 2.7V to 5.5V 16-Bit DAC
  • MS5541M - 2.7V to 5.5V 16-Bit DAC
  • MS5542 - 2.7V to 5.5V 16-Bit DAC
  • MS5543 - 16-Bit DAC
  • MS5510 - 8-bit High-speed ADC
  • MS5175 - 16-bit built-in reference analog-to-digital converter
  • MS5182N - 16bit 4/8-Channel SAR ADC
  • MS5189N - 16bit 4/8-Channel SAR ADC

Full PDF Text Transcription

Click to expand full text
MS5541/MS5542 2.7V to 5.5V, Serial Input, Voltage Output, 16-Bit DAC PRODUCT DESCRIPTION The MS5541/MS5542 is a single-channel, 16-bit, serial input and voltage output digital-to-analog converter (DAC). It operates from single power supply with 2.7V to 5.5V, and the output range is from 0V to VREF. Within the output range, the monotonicity is ensured. And it could provide 1LSB INL accuracy at 14-bit in the temperature range of -40°C to +85°C. The MS5541/MS5542 provides unbuffered output and has many features, including short setup time, low power dissipation and low offset error. In addition, due to the low noise and low glitch characteristics, the MS5541/MS5542 is suitable for several terminal systems. The MS5542 could operate in bipolar mode and generate VREF output amplitude.
